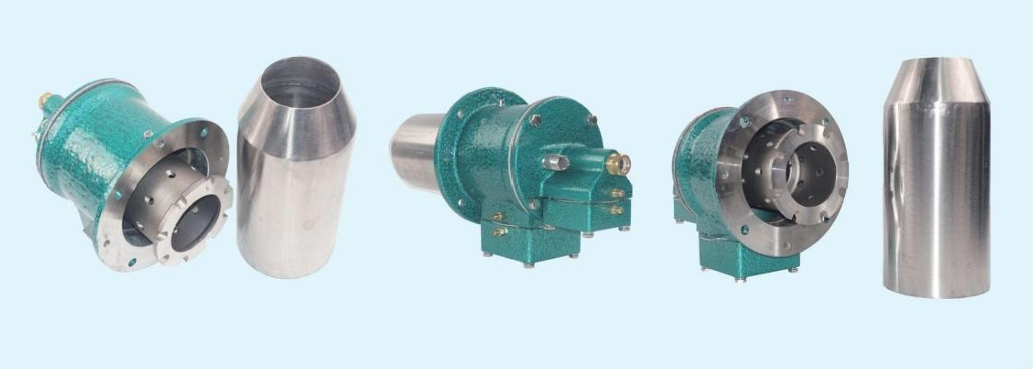

Industrial High speed burner GJserie GJ0015,
product quality and system efficiency.Fourteen sizes,
ranging from 150,000 to 20,000,000 High Velocity
Burner GJ series isa nozzle mixing type burner,which is
designed to use ambient combustion air,and burn a
powerful high temperature airflow through a combus-
tion chamber.The high velocity of the gas improves
temperature uniformity,BTU/h (40 to 5333 kW).
High Speed(HV):500 ft/s(152m/s)max Medium
Velocity(MV):250 ft/s(125m/s)max Turndown:50:1
Maximum process temperature:2800°F(1540℃)
Low emissions
Air and gas inlets can be adjusted individually in 90°
increments to suit various
piping schemes
