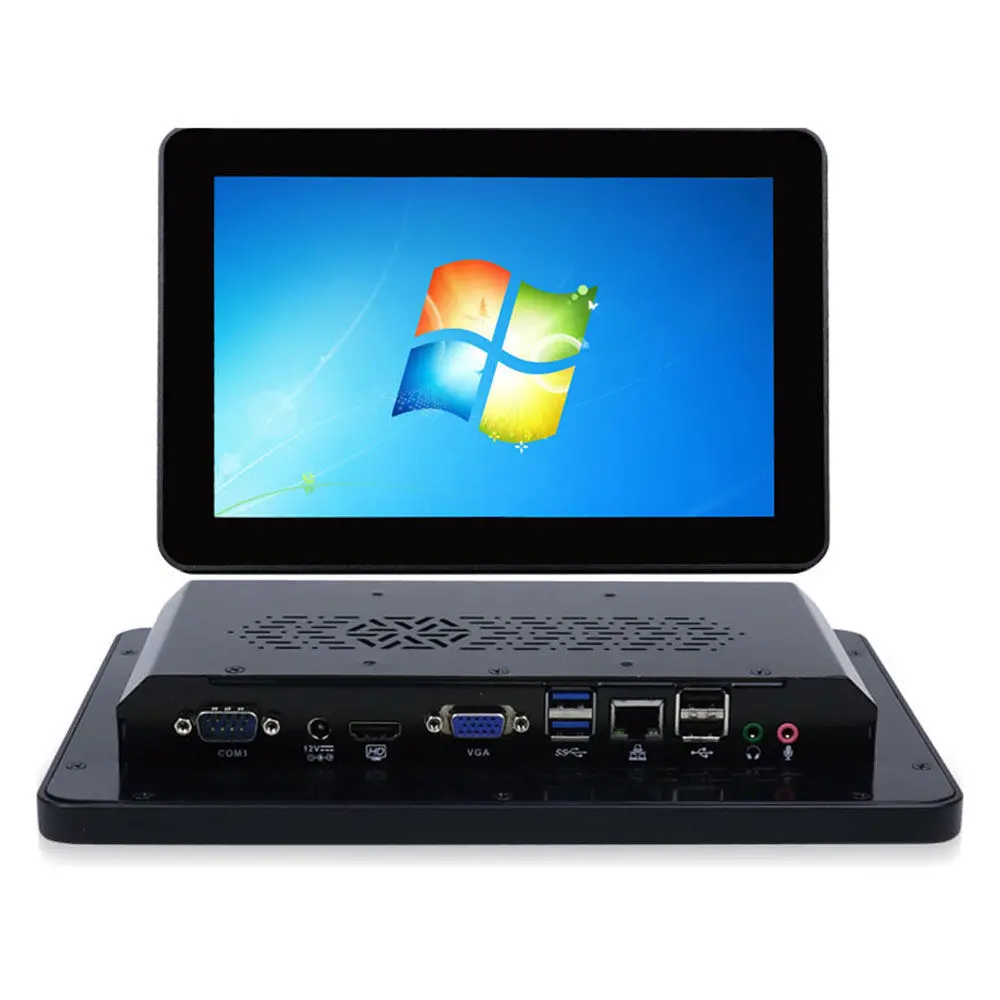

ITPC-A101 Touch panel pc Intel Celeron J1900 quad core processor,
upport 1*HDMI，Built-in 1*LVDS,
Adopt HD high resolution LCD screen,
Brightness: 350 cd/m2,
Industrial grade multi-touch capacitive touch screen.
| System Parameter | |
| Model | ITPC-A101 Touch panel pc |
| Processor | Intel Celeron J1900, 【Quad core quad threading，1.99GHz】 |
| Chip | Intel CPU Integrated Chip |
| Memory | Support 1*DDR3L 1333/1600 Memory Slot， Max. 8GB |
| BIOS | 64Mb Flash ROM |
| Display Chip | Integrated Intel HD Graphics |
| Display port | 1*HDMI，Built-in 1*LVDS, 【Support synchronous / asynchronous dual display】 |
| Storage | 1*MSATA，1*2.5 SATA HDD |
| I/O | 1*USB3.0，1*USB2.0，2*RS232 COM, （2*RS232/485 COM optional， Max. 3*COM），1*HDMI， 2*Intel i211-AT 1000M LAN， 1*DC，1*Mic，1*Line Out |
| Expansion Slot | Support 1*MSATA Slot |
| Support 1*Mini PCIE Slot, 【WIFI/Bluetooth/3G/4G Optional，1*SIM Slot】 |
|
| Network | 2* RTL8111F 10/100/1000M Lan |
| LCD | Size：10.1 inch TFT-LCD； |
| Ratio：16：10； | |
| Resolution：1280 * 800； | |
| Brightness：350 cd/m2； | |
| Viewing Angle：Full Angle | |
| Touch Screen | Industrial grade multi-touch capacitive touch screen |
| Speaker | Two 8-ohm 2-watt speakers |
| Power Supply | DC 12V |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
| Structure Parameter | |
| Color | Black (Color can be customized) |
| Material | Pure Aluminum |
| Size | 260 * 178 * 38 mm |
| Weight | 1.5 kg【not include wall bracket】 |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +40℃【Commercial HDD】， -10℃ ～ +50℃【Industrial SSD】， surface air flow |
| Work Humidity | 5% ～ 95% Non-condensing |
