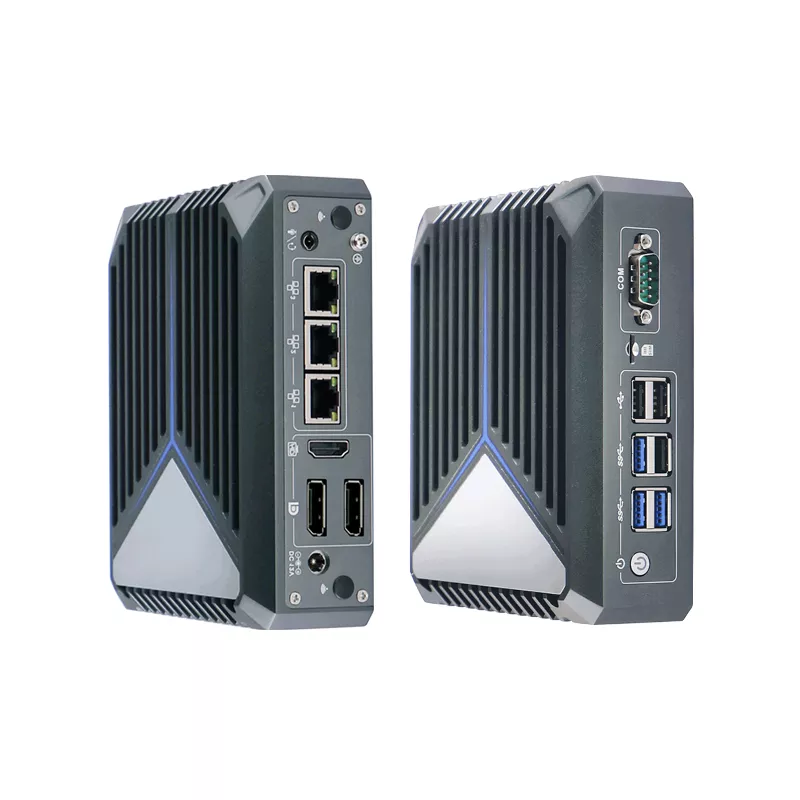

J6412 Fanless Mini PC 12V Intel Celeron with Quad core 3xIntel i226-V 2.5G Lans,
also comes with DDR4 RAM Max 32G 1xM.2 3052 B-key Optional 5G 3xM.2 slots and support WIFI & 4G/5G.
| System Parameter | |
| Model | NANO-N1121 |
| Processor | Intel Celeron J6412（quad core four threads,2.0GHz,Max to 2.6GHz）； |
| Chipset | Intel(R) UHD Graphics |
| Memory | Support 1*DDR4 3200 SODIMM RAM Slot，Max 32GB |
| BIOS | AMI UEFI BIOS |
| Display Port | 1xHDMI，2xDP （Support Synchronous/asynchronous triple display,Resolution Max 4096×2160 @ 60Hz） |
| Storage | 1xM.2 2280 slot,1×2.5 inch HDD/SSD |
| Expansion | 1xM.2 2280 M-key slot（ SATA protocol） |
| Front I/O | 1*Power switch , 3*USB3.1 , 3*USB2.0 , 1*COM , 1*SIM card slot |
| Rear I/O | 1*DC , 2*DP , 1*HDMI , 3*2.5G Lans , 1*Audio ( Support Mic and Speaker at the same time) |
| Network | 3xIntel i226-V 2.5G LAN |
| Input Voltage | DC 12V Input； |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Other Function | Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, watchdog (level 0-255), TPM2.0 security encryption |
| Application | Industrial automation, medical, logistics and transportation, warehousing, electronic education ETC,. |
| Structure Parameter | |
| Color | Metal gray 【Any color can be customized】 |
| Material | High-quality all aluminum，surface anodic oxidation |
| Dimension | 150 * 126.5 * 45 mm |
| Weight | 0.84 kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +20℃（Commercial HDD），-20℃ ～ +60℃（Industrial SSD），Surface air flow |
| Work Humidity | 5% ～ 95% non-condensing |
