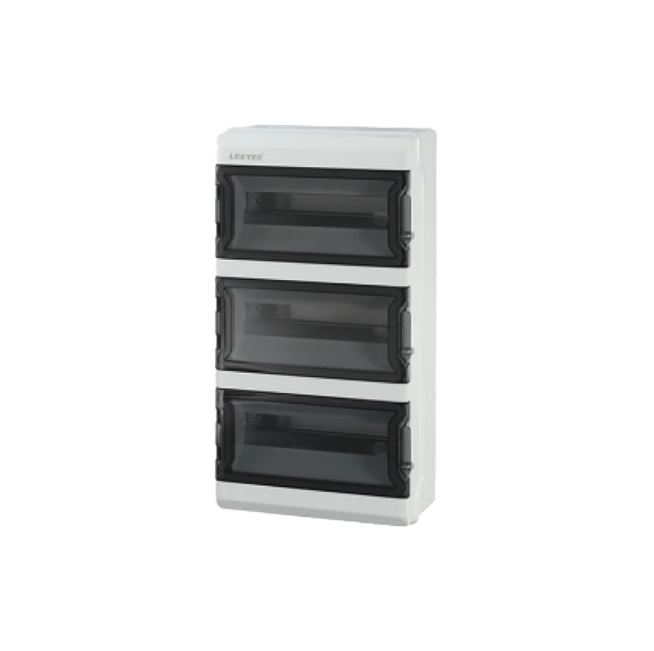

LYAT-39,
• The bottom shell and surface frame are make of ABS new material, while thetransparent cover is make of PC new material,
which has characteristics such asgood toughness, high strength, good impact resistance, and long service life.
LYAT series surface mounted waterproof distribution box product data summary table
| Number of rows |
Overall dimensions(mm) (L*W*H) |
Zero and ground busbar configuration |
Outer boxsize (mm) (L*W*H) |
Gross weight of the entire box (kg) |
Number of boxes (pieces) |
|||||
| Single Row |
128*200*100 | Zero row:3holes Ground row:3holes |
545*425*555 | 21.5 | 40 | |||||
| 164*200*100 | Zero row:5holes Ground row:5holes |
545*425*530 | 17.8 | 30 | ||||||
| 218*200*100 | Zero row:5holes Ground row:5holes |
545*425*465 | 16.2 | 20 | ||||||
| 296*230*120 | Zero row:8holes Ground row:8holes |
622*520*490 | 19 | 16 | ||||||
| 332*230*120 | Zero row:8holes Ground row:8holes |
645*357*490 | 13.8 | 10 | ||||||
| 386*230*120 | Zero row:8holes Ground row:8holes |
645*405*490 | 15.5 | 10 | ||||||
| Double roW |
296*390*130 | Zero row:Two8holes Ground row: Two8holes |
642*425*415 | 19.2 | 6 | |||||
| Three roWS |
296*550*130 | Zero row:Two8holes Ground row: Two8holes |
565*315*146 | 2.7 | 1 | |||||
