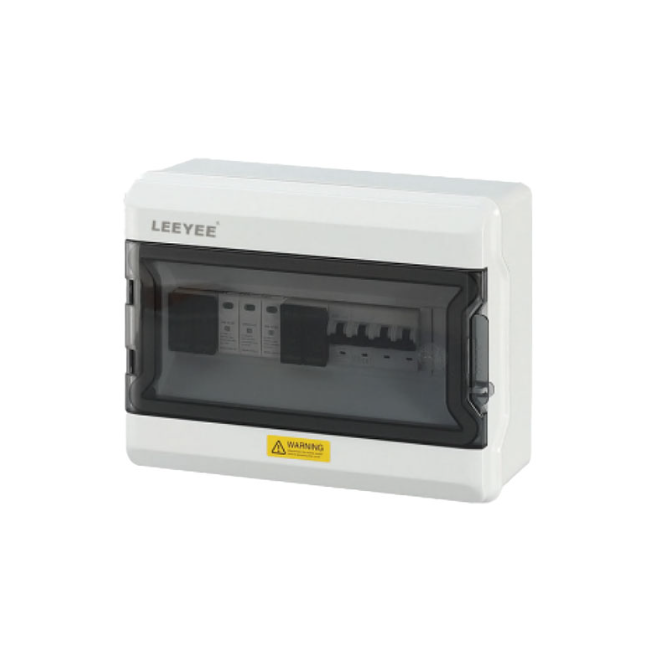

LYHD-2/1 IP65 DC string box,
is designe for l string PV system. For surge protection and over. load protection at solar DC side.
Product Application
IP65 DC string box is designed for l string PV system. For surge protection and over. load protection at solar DC side.
DC Breaker
LYB1-63
• IEC60947-2 PV&DC standard
• Over-load,short circuit Protection
• Non Polarity for easier wiring
DC Surge Arrester
SPD-T2-DC/3P
• Max Operation Voltage 1000v
• Standard Compliance with IEC/EN 61643-31 Type2
• Maximum Discharge Current 40 KALED Indicator or without
DC Fuse
LYF3-32/LYF3-32L
• LED indicator orwithout LED indicator
• Rated Working Voltage 1000v
• Fuse Link 10x38mm 16A
| Specification | |||||||||||||||
| LYHD-2/1 | |||||||||||||||
| Input | 2 strings | ||||||||||||||
| Output | 1 strings | ||||||||||||||
| MaxVoltage | 1000V | ||||||||||||||
| Rated Currentof DC Breaker | 16A | ||||||||||||||
| Max Current Output | 40A | ||||||||||||||
| Enclosure | |||||||||||||||
| Material | |||||||||||||||
| Degree of Protection | IP65 | ||||||||||||||
| Impacts | IK09 | ||||||||||||||
| Dimensions | DXAT-13;L296*W230*H120mm | ||||||||||||||
| Input Cable Glands | PG09,2.5-16 | ||||||||||||||
| Output Cable Gland | PG21,2.5-16 | ||||||||||||||
| Environment | |||||||||||||||
| Operating temperature | -20℃-+60℃ | ||||||||||||||
| Humidity | 99% | ||||||||||||||
| Altitude | 2000M | ||||||||||||||
| Installation | Wall Mounting | ||||||||||||||
