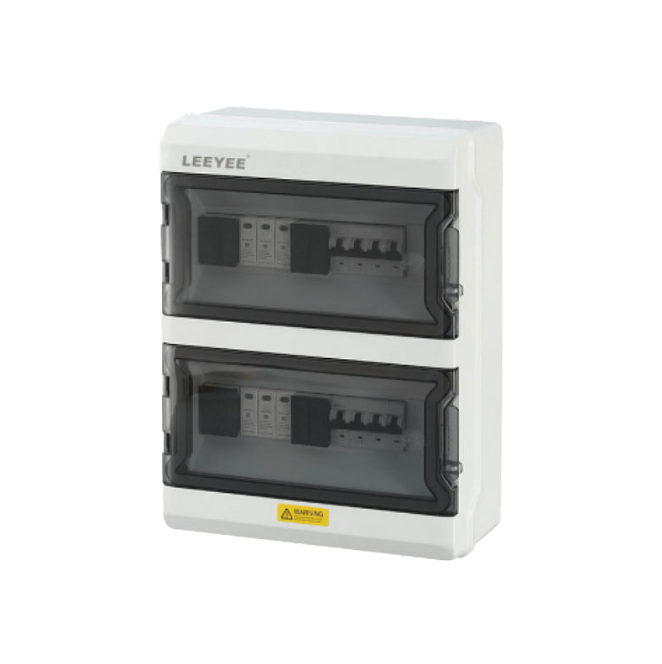

LYHD-4/2 IP65 DC string box,
is designe for 4 string PV system. For surge protection and overload protection at solar DC side.
Product Application
IP65 DC string box is designed for 4 string PV system. For surge protection and overload protection at solar DC side.
DC Breaker
LYB1-63
• IEC60947-2 PV&DCstandard
• Over-load,short circuit Protection
• Non Polarity for easier wiring
DC Surge Arrester
SPD-T2-DC/3P
• Max Operation Voltage 1000V
• Standard Compliance with IEC/EN 61643-31 Type2 Maximum Discharge Current 40 KA
DC Fuse
LYF3-32/LYF3-32L
• LED indicator or without LED indicator
• Rated Working, Voltage 1000V
• Fuse Link 10x38mm 16A
| Specification | |||||||||||||||
| LYHD-4/2 | |||||||||||||||
| Input | 4 strings | ||||||||||||||
| Output | 2 strings | ||||||||||||||
| MaxVoltage | 500V | 1000V | |||||||||||||
| Rated Current of DC Breaker | 25A/25A | 25A/25A | |||||||||||||
| Max Current Output | 63A/63A | 40A/40A | |||||||||||||
| Enclosure | |||||||||||||||
| Material | PC | ||||||||||||||
| Degree of Protection | IP65 | ||||||||||||||
| Impacts | IK09 | ||||||||||||||
| Dimensions | DXAT-26;L296*W390*H130mm | ||||||||||||||
| Input Cable Glands | PG09,2.5-16 | ||||||||||||||
| Output Cable Gland | PG21,2.5-16 | ||||||||||||||
| Environment | |||||||||||||||
| Operating temperature | 20℃-+60℃ | ||||||||||||||
| Humidity | 99% | ||||||||||||||
| Altitude | 2000M | ||||||||||||||
| Installation | Wall Mounting | ||||||||||||||
