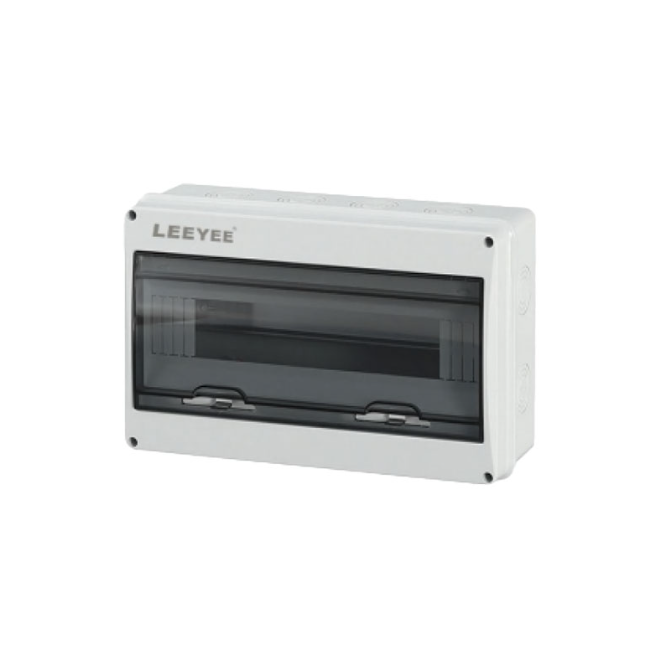

LYHT-15,
The bottom shell and surface frame make of ABS new material, while thetransparent cover make of PC new materlal,
which has characteristics such asgood toughness, high strength, good impact resistance, and long service life.
which has characteristics such asgood toughness, high strength, good impact resistance, and long service life.
LYAT series surface mounted waterproof distribution box product data summary table
| No. | Model and name | Number of circuits |
Number of rowS |
Overall dimensions (mm) (L*W*H) |
Zero and ground busbar configuration |
Outer box size (mm) (L*W*H) |
Gross weight of the entire box (kg) |
Number of boxes (pieces) |
|||||||
| 1 | LYHT-5 Exposed waterproof distribution box |
5way | Single Row |
129*170*95 | Zero row:3holes Ground row: 3holes |
555*365*520 | 18.2 | 40 | |||||||
| 2 | LYHT-8 Exposed waterproof distribution box |
8way | 183*170*95 | Zero row:5holes Ground row: 5holes |
520*390*545 | 17.8 | 30 | ||||||||
| 3 | LYHT-12 Exposed waterproof distribution box |
12way | 255*200*105 | Zero row:8holes Ground row: 8holes |
570*425*540 | 18 | 20 | ||||||||
| 4 | LYHT-15 Exposed waterproof distribution box |
15way | 309*200*105 | Zero row:8holes Ground row: 8holes |
625*460*430 | 17.3 | 16 | ||||||||
| 5 | LYHT-18 Exposed waterproof distribution box |
18way | 363*200*110 | Zero row:8holes Ground row: 8holes |
575*383*430 | 12.6 | 10 | ||||||||
