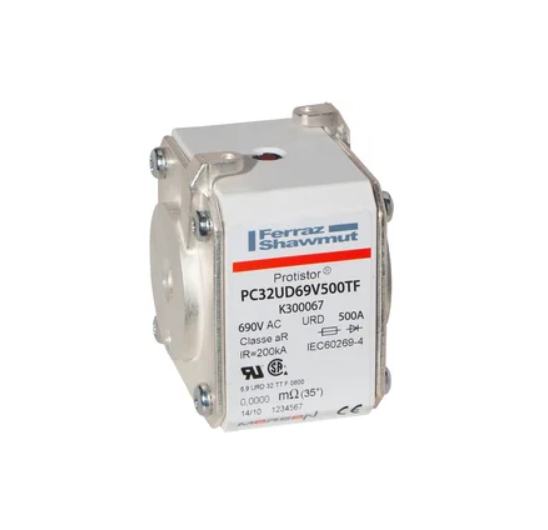

Mersen Square Body High-Speed Fuse Protistor K300067 – PC32UD69V500TF,
Size 32 aR 690VAC IEC 700VAC UL 500A With Striker Flush ends metric threads
The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design,
and ultimate protection for today’s power conversion equipment.
These aR ultra-fast acting square body fuse-links are available in different body sizes,
each size having multiple worldwide acceptable mounting styles.
The Protistor® engineere to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices.
Fuses are assemble with die-cut elements embedde in solidified sand,
which helps control arcing characteristics for a lower I²t and high interrupting rating level.
All contact surfaces are silver plated and all hardware is non-magnetic.
Each fuse-link can equippe with a low voltage trip-indicator which can operate a field mountable microswitch.
