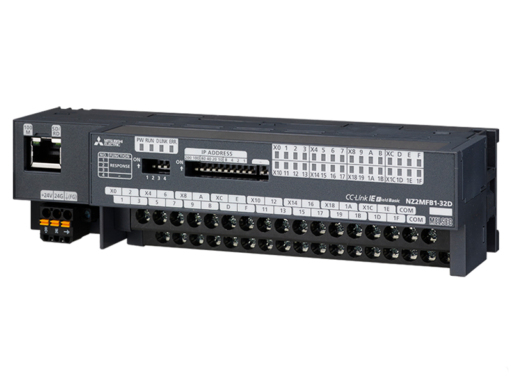

MITSUBISHI ELECTRIC CC-Link IE Field Basic Remote I/O Modules NZ2MFB1-32D,
PLC CC-Link IE Field Basic, 32 Input, DC24V, Screw , Single Wire,
24V DC, 32 inputs, screw terminal.
| Series | CC-LINK IE FIELD NETWORK BASIC |
|---|---|
| Type | REMOTE DC INPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Inputs | 32 |
| Rated Input Voltage (VDC) | 24 |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,071 |
Conformity
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
Product Dimensions & Weight
| Width (mm) | 200 |
|---|---|
| Height (mm) | 50 |
| Depth (mm) | 68 |
| Weight (kg) | 0,3 |
Product Packaging
| Cardboard (g) | 120 |
|---|---|
| Other paper (g) | 0 |
| Aluminum (g) | 0 |
| Steel (g) | 0 |
| Styrofoam (g) | 0 |
| Other plastic (g) | 4 |
| Wood (g) | 0 |
| Glass (g) | 0 |
| Others (g) | 0 |
