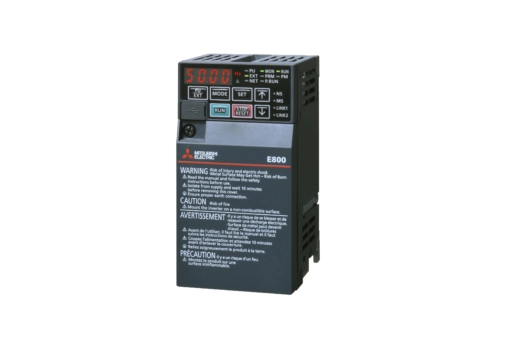

MITSUBISHI ELECTRIC Frequency Inverters E800-SCE Series Ethernet Safety Communication FR-E820S-0008SCEPB-60,
Advanced Safety Function, Versatile, Expandable Compact Solutions, Single phase 200VAC ~ 240VAC 0.1kW – 2.2kW Power Range.
0,80,10,2–590000
| Series | FR-E800 SERIES |
|---|---|
| Type | FR-E800-ETH SAFETY CONTROL |
| Minimum Rated Voltage (V) | 200 |
| Min. Permissible Voltage (V) | 170 |
| Maximum Rated Voltage (V) | 240 |
| Max. Permissible Voltage (V) | 264 |
| Current Type | AC |
| Phases | 3 |
| Rated-Output-Current ND (A) | |
| Rated-Motor-Capacity ND (kW) | |
| Frequency Range (Hz) | |
| Control Method | V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display-Type | 4 DIGITS LED |
| PLC Function | YES |
| Program Memory | 2K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | |
| Digital Outputs (Transistor) | |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | NO |
| USB | 1 (MINI B) |
| Ethernet Port | 2 |
| Built-In Network | PROFINET, MODBUS/TCP, CC-LINK IE TSN, CC-LINK IE FIELD BASIC |
| Leakage Current (mA) | 1,2 |
| Power Loss ND (W) | 12 |
| Protection Class | IP20 |
Conformity
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | COMPLIANT |
| UKCA | COMPLIANT |
Product Dimensions & Weight
0,5
| Width (mm) | 68 |
|---|---|
| Height (mm) | 128 |
| Depth (mm) | 80,5 |
| Weight (kg) |
Product Packaging
00000
| Cardboard (g) | 145 |
|---|---|
| Other paper (g) | |
| Aluminum (g) | |
| Steel (g) | |
| Styrofoam (g) | |
| Other plastic (g) | 10 |
| Wood (g) | 0 |
| Glass (g) | 0 |
| Others (g) |
