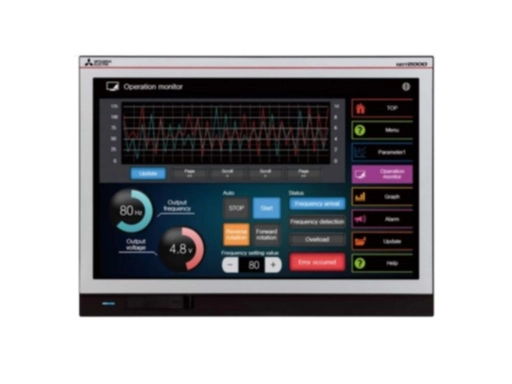

MITSUBISHI ELECTRIC GT2000 Wide New Generation Operator Panels GT2512-WXTSD,
In addition to the GT25 Series
Audio output
Anti Aliasing
It can be connected to 3 separate Eth
ernet Networks together with Wireless.
In addition to the GT21 Series
VNC Remote Access
FTP Server/Client
FX Ladder View
Interfaces
Standard: RS-422/485; RS-232
USB x2 (Host , Device)
Ethernet x 2
SD card
Audio Output
Standard: RS-422/485; RS-232,
USB x2 (Host , Device)
Ethernet,
SD card
Physical Proper
ties
7”,10.1” LCD TFT Wide (16:9) Display. Total 4 models for GT25W/21W
65k Color with WXGA Ultra-high resolution
New Metallic and Narrow outer frame
Internal 2-Port Ethernet on GT25W
Internal Audio Output on GT25W
Clear visuals with Anti-Aliasing
IP67F, CE, UL, cUL Certified.
| Series | GOT2000 SERIES |
|---|---|
| Type | GT25 WIDE MODEL |
| Display | TFT |
| Display Colour | 65536 |
| Display Size (Inch) | 12,1 |
| Resolution (Pixels) | 1280X800 |
| Power Supply (V) | 24 |
| Current Type | DC |
| Protection Class | IP67F |
| Internal Memory Capacity (MB) | 32 |
| Memory Card Slot | SD |
| USB | 2 |
| Ethernet Port | 2 |
| RS-232 | 1 |
| RS-422/485 | 1 |
| Network Options | MODBUS, ETHERNET |
| Slot for Optional Cards | YES |
Conformity
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
Product Dimensions & Weight
| Width (mm) | 299 |
|---|---|
| Height (mm) | 219 |
| Depth (mm) | 48 |
| Weight (kg) | 1,7 |
Product Packaging
| Cardboard (g) | 620 |
|---|---|
| Other paper (g) | 0 |
| Aluminum (g) | 0 |
| Steel (g) | 0 |
| Styrofoam (g) | 0 |
| Other plastic (g) | 25,7 |
| Wood (g) | 0 |
| Glass (g) | 0 |
| Others (g) | 0 |
GT2512-WXTBD
GT2510-WXTSD
GT2510-WXTBD
GT2507-WTSD
GT2507-WTBD
GT2505-VTBD
GT2107-WTSD
GT2107-WTBD
