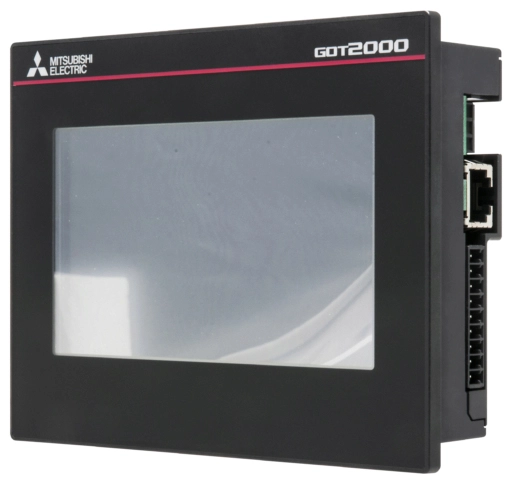

MITSUBISHI ELECTRIC GT21 Compact Size Models GT2104-RTBD,
Data Logging
Multi Channel (Simultaneous Ethernet + Serial communi
cation)
FA Transparent
Operator protection
Ability to Backup / Restore MELSEC Controllers
Horizontal/Vertical Usability
Physical properties
3.8”, 4.1” LCD TFT Display
Led Backlight
Analog Touch Panel
65k Colors, 32 Gray Scales + 5 led
Backlights
3 MB Internal Memory
IP67F
CE,UL,cUL Certified
Interfaces
Standard: RS-422/485;RS-232;USB x1 (Device), Ethernet
Optional: SD Card
| Series | GOT2000 SERIES |
|---|---|
| Type | GT21 MODEL |
| Display | TFT |
| Display-Colour | 65536 |
| Display-Size (Inch) | 4,3 |
| Resolution (Pixels) | 480X272 |
| Power Supply (V) | 24 |
| Current Type | DC |
| Protection Class | IP67F |
| Internal Memory Capacity (MB) | 9 |
| Memory Card Slot | SD |
| USB | 1 |
| Ethernet Port | 1 |
| RS-232 | 1 |
| RS-422/485 | 1 |
| Network Options | MODBUS, ETHERNET |
Conformity
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | NON-COMPLIANT |
| Shipping Approvals | ABS,BV,DNV,LR,NK,RINA |
| UKCA | COMPLIANT |
Product Dimensions & Weight
0,4
| Width (mm) | 128 |
|---|---|
| Height (mm) | 102 |
| Depth (mm) | 42,9 |
| Weight (kg) |
Product Packaging
00000
| Cardboard (g) | 127 |
|---|---|
| Other paper (g) | |
| Aluminum (g) | |
| Steel (g) | |
| Styrofoam (g) | |
| Other plastic (g) | 1 |
| Wood (g) | 0 |
| Glass (g) | 0 |
| Others (g) |
