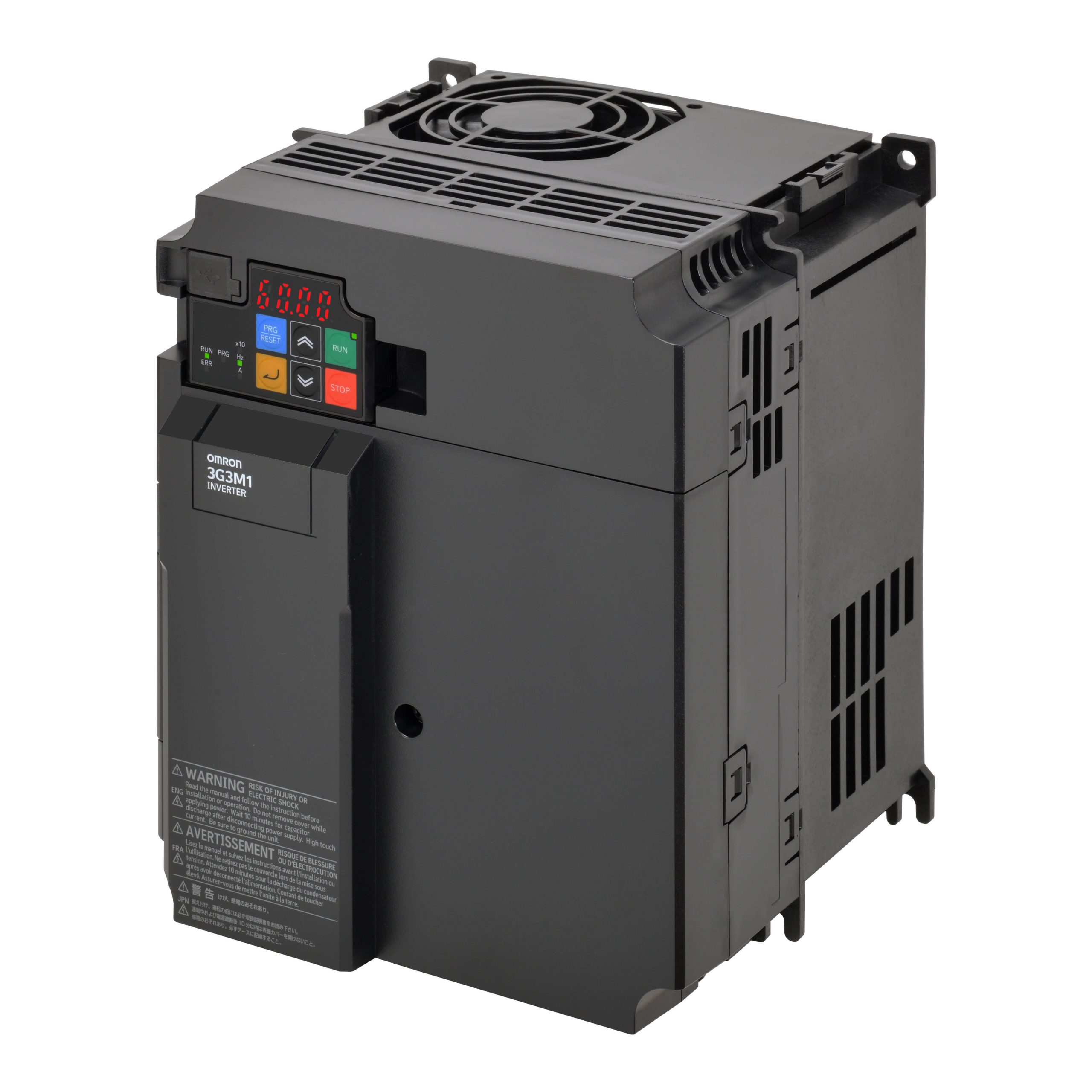

omron 3G3M1-A4075 Integrated AC Drivers Solution\
The Integrated AC Drivers Solution
System integration on EtherCAT® leads you to the stage where machine design is more flexible and higher efficiency, saving space, and integrated configuration by software tool
- IM and PM motor control in OLV & CLV (200% torque at 0Hz).
- Torque control for IM in OLV/CLV, PM in CLV.
- Speed, Position and Gear function.
- Flexible EtherCAT configuration: Standard and Ring topology.
- Built-in 1 encoder / pulse counter input.
- Safe Stop 0 (STO SIL3 PLe) wired and FSoE.
- Easy Plug-In Development allowing Custom Functionality inside of the inverter.
- Energy saving dedicated functionality.
- M1 STD built-in Modbus and M1 ECT built-in EtherCAT
- PC configuration tool: Sysmac Studio IDE
- Coated PCB for dust and moisture resistance.
- 10 years 24/7 Maintenance Free operation.
- CE,UKCA, cULus, KC, RCM and RoHS.
| Product | Max. motor output at constant torque | Max. motor output at variable torque | Communication port(s) | |
|---|---|---|---|---|
| 0.2 kW | 0.4 kW | MODBUS Slave, Serial RS-485, USB | ||
| 0.2 kW | 0.4 kW | EtherCAT Slave, USB | ||
| 0.4 kW | 0.75 kW | MODBUS Slave, Serial RS-485, USB | ||
| 0.4 kW | 0.75 kW | EtherCAT Slave, USB | ||
| 0.75 kW | 1.1 kW | MODBUS Slave, Serial RS-485, USB | ||
| 0.75 kW | 1.1 kW | EtherCAT Slave, USB | ||
| 1.5 kW | 2.2 kW | MODBUS Slave, Serial RS-485, USB | ||
| 1.5 kW | 2.2 kW | EtherCAT Slave, USB | ||
| 2.2 kW | 3 kW | MODBUS Slave, Serial RS-485, USB | ||
| 2.2 kW | 3 kW | EtherCAT Slave, USB | ||
| 3.7 kW | 5.5 kW | MODBUS Slave, Serial RS-485, USB | ||
| 3.7 kW | 5.5 kW | EtherCAT Slave, USB | ||
| 5.5 kW | 7.5 kW | MODBUS Slave, Serial RS-485, USB | ||
| 5.5 kW | 7.5 kW | MODBUS Slave, Serial RS-485, USB | ||
| 5.5 kW | 7.5 kW | EtherCAT Slave, USB | ||
| 7.5 kW | 11 kW | MODBUS Slave, Serial RS-485, USB | ||
| 7.5 kW | 11 kW | MODBUS Slave, Serial RS-485, USB | ||
| 7.5 kW | 11 kW | EtherCAT Slave, USB | ||
| 11 kW | 15 kW | MODBUS Slave, Serial RS-485, USB | ||
| 11 kW | 15 kW | EtherCAT Slave, USB |
