Schneider SPP110 Pressure Transmitters switch sensor – 0…100 kPa 004702020

Schneider SPP110 Pressure Transmitters switch sensor – 0…100 kPa 004702020

Add to wishlist
Category:
Brand:
Share:

Schneider SPP110 Pressure Transmitters switch sensor – 0…100 kPa 004702020

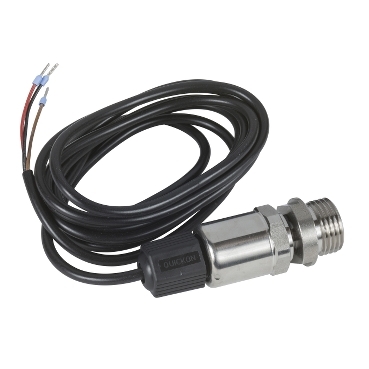

SPP110 pressure transmitters are intended for use in HVAC pipe systems to
monitor pressure. The SPP110 is an electronic pressure transmitter that
converts the measured pressure into an electric 0 … 10 Vdc signal. The
SPP110 is delivered with 2 m (6.56 ft) cable and a G1/2 in. adapter nut.
Medium: any medium suitable for stainless steel.
Calibration certificates: See Appendix B

004702020 SPP110-100kPa
004702040 SPP110-250kPa
004702060 SPP110-600kPa
004702080 SPP110-1000kPa
004702100 SPP110-1600kPa
004702120 SPP110-2500kPa
004702140 SPP110-4000kPa

Specificaties

Hoofd
range of product SPP110
product or component type Druksensor met zender
type meting Overdruk
device application Controle pomp en compressor
analoog outputtype 0…10 V DC
Doorsnede barenstel 29 psig (2 bar)
product certifications CE
gecontroleerde vloeistof Water
Geschikt formaat G 1/4″
G 1/2″
Type bevestiging Mannelijk
IP-beschermingsgraad IP65
locatie Installatieruimte
mounting support Pijp
net weight 0,13 kg
Bedrijfsafstand 15 mA
Druk toegestaan statisch +/-0,5%
Nominale druk 0…15 psi (0…1 bar)
ambient air temperature for operation -40…105 °C
ambient air temperature for storage -40…115 °C
bedradingstechniek 3-draads
standards EN 50081-1
EN 50082-2
Kalibratiecertificaat Temperatuur: Geen
Us nominale voedingsspanning 24 V AC
doelland Midden-Oosten en Afrika.
Azië en de Stille Oceaan.
Complementair
mounting mode Pijp
meetbereik 0…100 kPa
materiaal PA (polyamide): aansluitdoos
Roestvrij staal: membraan
nominale spanning 16…36 V DC
24 V AC
outputtype Analoog 3-draads
maximumdruk 200 kPa
displaytype Zonder display
Verpakkingseenheid
Eenheidstype_van_verpakking_1 PCE
Aantal_eenheden_in_verpakking_1 1
verpakking_1_hoogte 13,6 cm
verpakking_1_breedte 6,6 cm
verpakking_1_lengte 4,4 cm
verpakking_1_gewicht 180 g
contractuele waarborg
Garantie 24 months
