Schneider Stc500 Contact Temperature Sensors 20 mm 5123218010

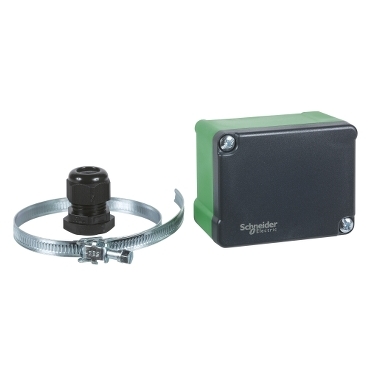

STC500 strap-on temperature sensors are designed for surface pipe mounting. The STC housing is equipped with a Ø 20 mm (0.79 in.) cable fitting.
Accuracy: See Appendix A, table C
Calibration certificates: See Appendix B
Thermistor table: See Appendix C, table A

Specifications

Head
range of product	STC500
product or component type	Sensor
type of measurement	Temperature
device application	Pipe
IP protection degree	IP65
location	Installation space
mounting mode	Clickable
depth	44 mm
height	84 mm
net weight	0.115 kg
width	65 mm
output type	Resistive output
product compatibility	Continuum
standards	EN 50081-1 EN 50082-1
colour	Black and green
ambient air temperature for operation	-40…130 °C
target country	Asia and the Pacific. Europe

Complementary
material	PA (polyamide): connection box
connections – terminal blocks	Wire (AWG 24…AWG 18)
time constant	66000 ms
number of cables	1 <0.02 m

Environment
type of temperature probe	NTC 10000 Ohm at 25 °C
product certifications	CE

Packaging unit
Unit type of packaging 1	PCE
Number of units in package 1	1
packaging_1_height	11.8 cm
packaging_1_width	9.4 cm
packaging_1_length	6.6 cm
packaging_1_weight	180 g
