Schneider STD670 Temperature Sensors Telescopic Duct 1.5 m (4.92 ft) Satchwell 5126040000

Schneider STD670 Temperature Sensors Telescopic Duct 1.5 m (4.92 ft) Satchwell 5126040000

Add to wishlist
Category:
Brand:
Share:

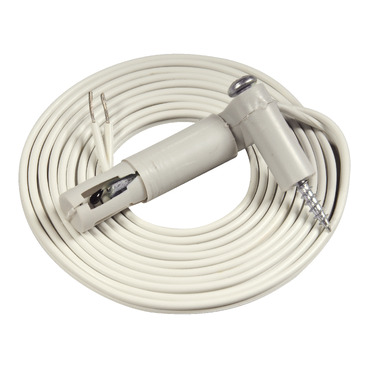

Schneider STD670 Temperature Sensors Telescopic Duct 1.5 m (4.92 ft) Satchwell 5126040000
The STD670 temperature sensor is intended for air duct mounting. The
STD670 has 1.5 m flying leads.
Accuracy: See Appendix A, table F
Calibration certificates: See Appendix B
Thermistor table: See Appendix C, table A

Specifications

Main
Range of product STD
Product or component type Sensor
Type of measurement Temperature
Device application Duct
IP degree of protection IP65
location Plant room
Mounting support Duct
Depth 45 mm
Height 66 mm
Width 85 mm
Output type Resistive output
Calibration certificate Temperature: none
Colour Black and green
Sensor type 10 kOhm thermistor w/resistor & 11 kOhm Shunt temperature
Targeted region Europe
Asia Pacific.
Complementary
Diameter 6 mm probe:
Display type Without display
Material Polyamide: enclosure
Measurement accuracy +/- 0.3 °C
Environment
Product certifications CE
Measurement range – 40…130 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.4 cm
Package 1 Width 6.5 cm
Package 1 Length 9.6 cm
Package 1 Weight 48.0 g
Contractual warranty
Warranty 18 months
