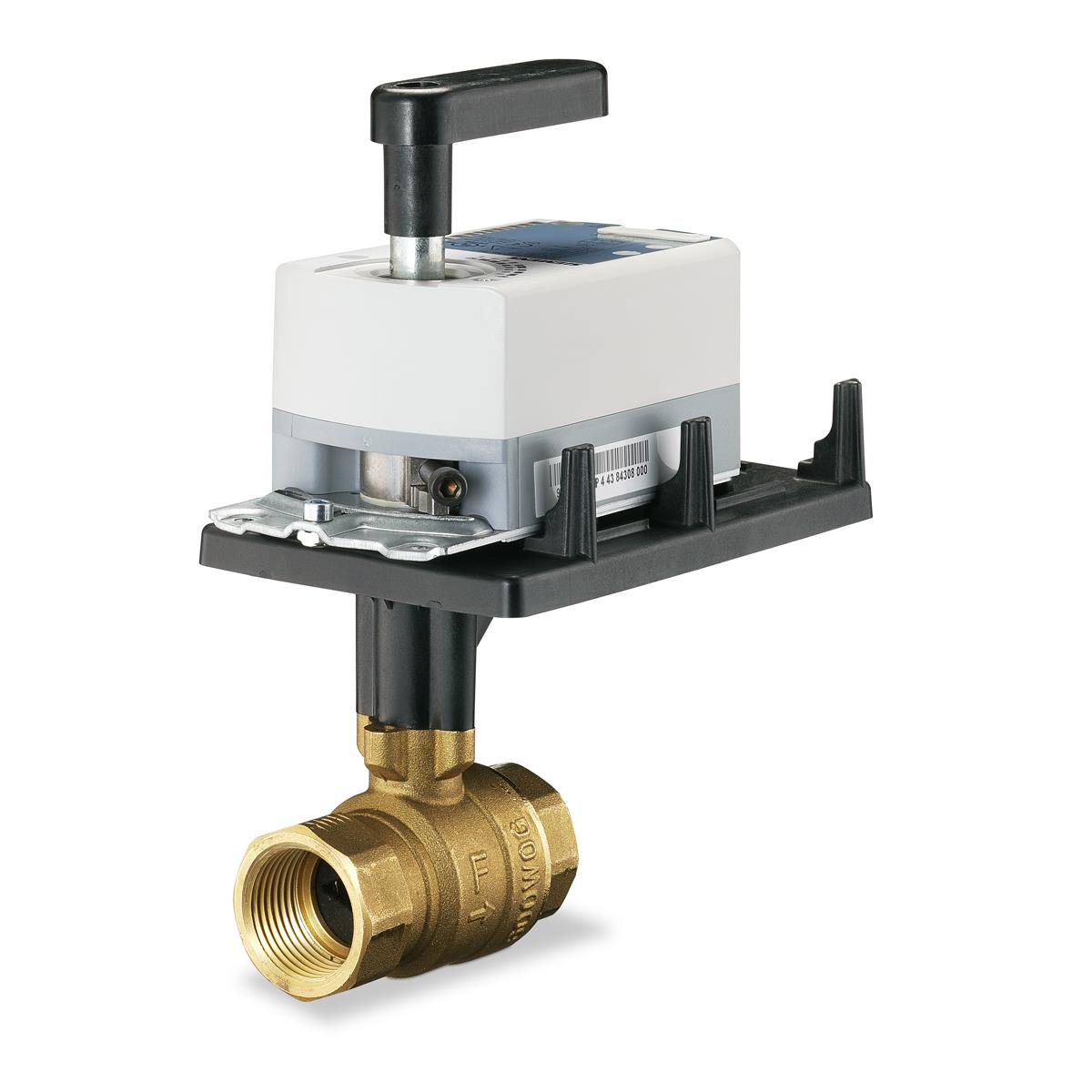

Siemens 171B-10322 TwoWay Ball Valve Assemblies,
This 599 Series 2-way ball valve with a floating control fail-in-place actuator assembly,
providing 200 psi close-off,
is used to control hot or chilled water and up to 50% Glycol solution in convectors,
fan coil units, unit conditioners,
radiation and reheat coils. This 1-1/2-inch valve is 25 Cv,
equal percentage flow characteristic, with chrome-plated brass ball and brass stem,
and an operating handle that can manually operate the valve in the event of power failure.
171B-10322S 171D-10322S
171B-10323S 171D-10323S
171B-10324S 171D-10324S
171B-10325S 171D-10325S
171B-10326S 171D-10326S
171B-10327S 171D-10327S
171B-10328S 171D-10328S
171B-10329S 171D-10329S
171B-10330S 171D-10330S
