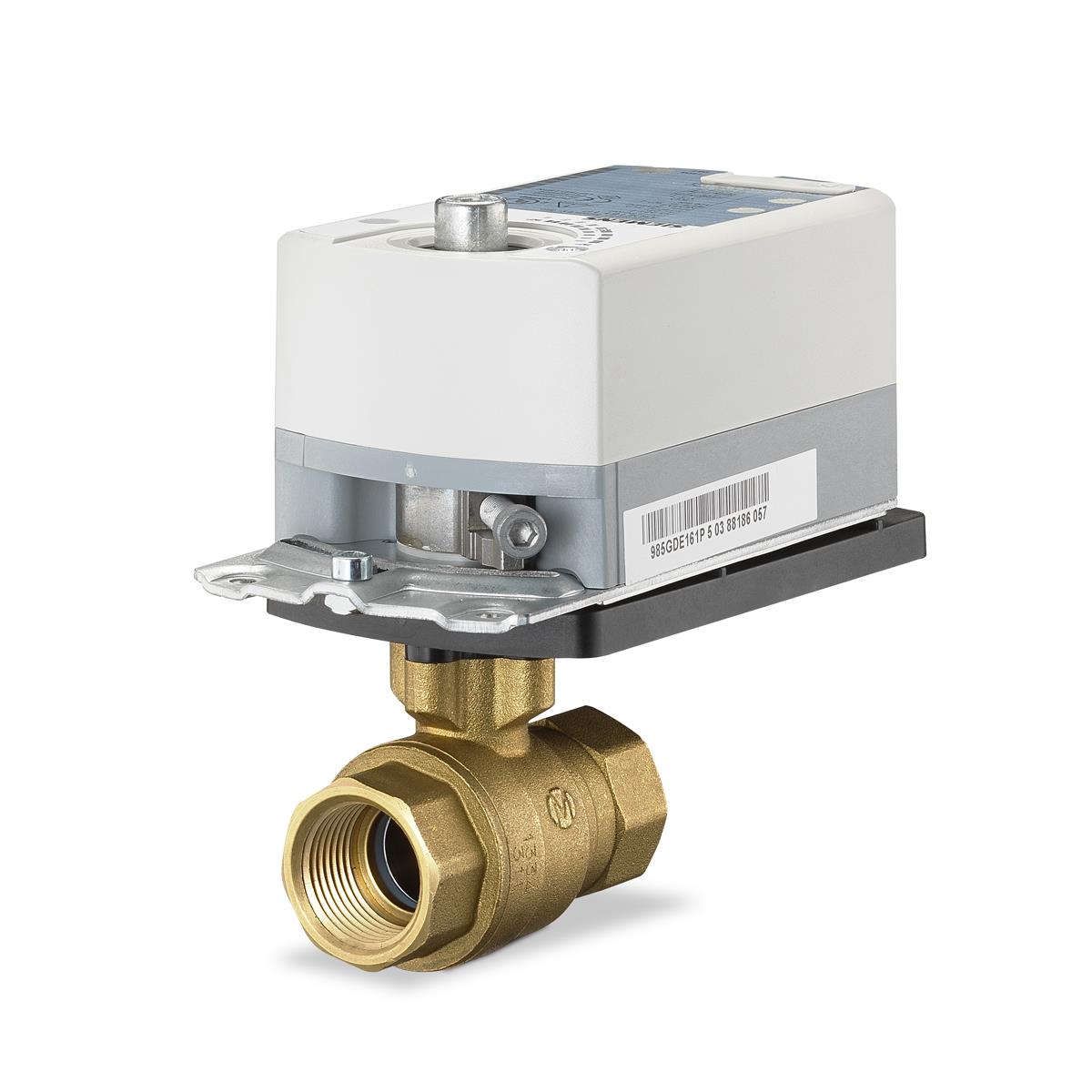

Siemens171A-10300S TwoWay Ball Valve Assemblies,
This 599 Series 2-way ball valve with a 2-position control,
and it normally open,olso fail safe actuator assembly,
providing 200 psi close-off, is used to control hot or chilled water and up to 50% Glycol solution in convectors,
and a fan coil units, unit conditioners, radiation and reheat coils.
This 1/2-inch valve is 0.4 Cv, equal percentage flow characteristic,
with chrome-plated brass ball and brass stem,
and an operating handle that can manually operate the valve in the event of power failure.
171A-10300S 171C-10300S
171A-10301S 171C-10301S
171A-10302S 171C-10302S
171A-10303S 171C-10303S
171A-10304S 171C-10304S
171A-10305S 171C-10305S
171A-10306S 171C-10306S
171A-10307S* 171C-10307S
