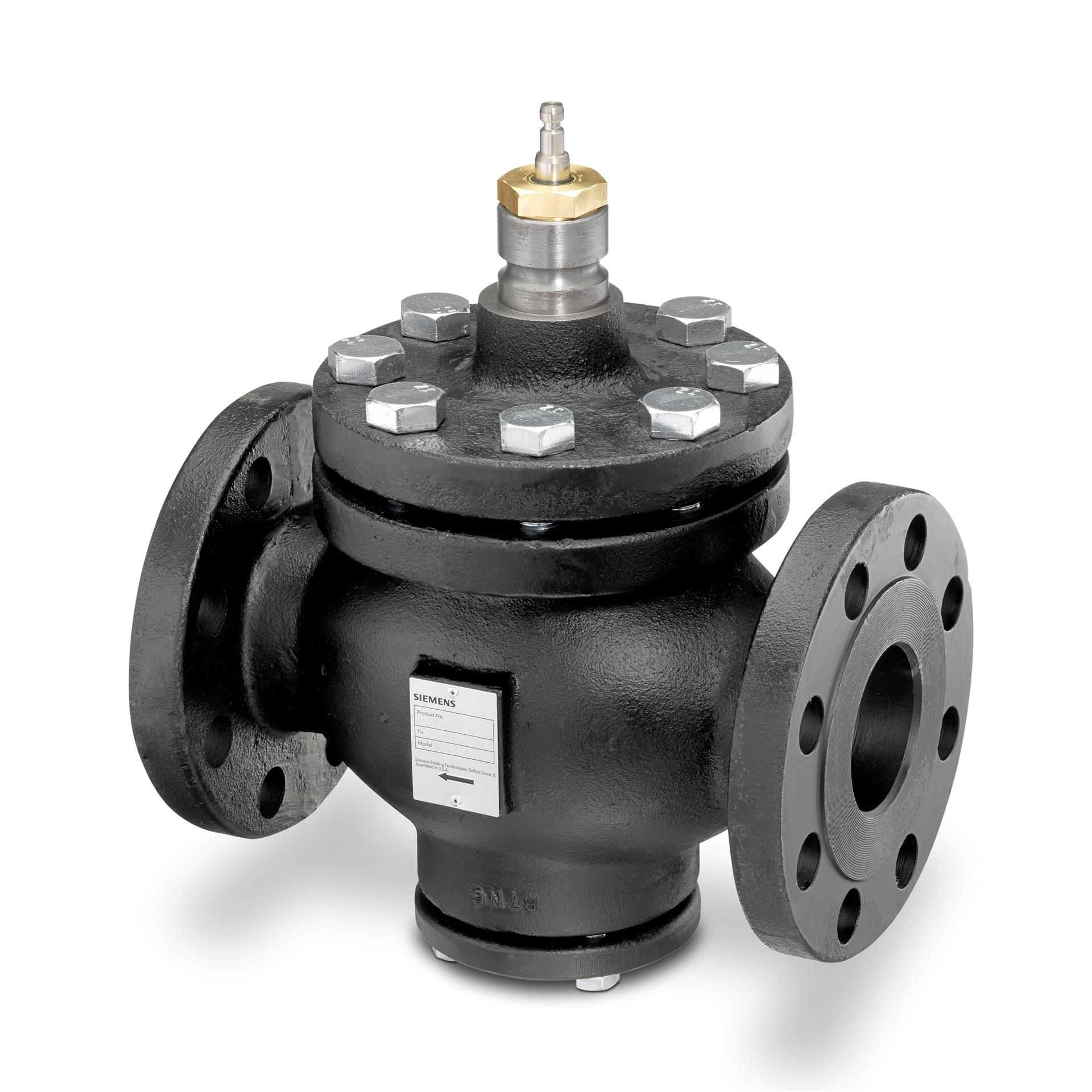

Siemens 599-05980 2-way Flanged Iron Globe Valves,
Designed to work with either pneumatic or electronic actuators,
the Flowrite Two-way Valves are available in both ANSI Class 125 and 250 for normally closed or normally open action.
Applications
The Flowrite Two-way valves are recommended for water,
steam, and glycol solutions up to 50 percent. Additional
specifications include the following:
● Water inlet pressures up to ANSI 125 and ANSI 250
cast iron body rating
● Water modulating differential pressure up to 25 PSI
(172 kPa) for bronze trim and 50 PSI (345 kPa) for
stainless steel trim
● Steam inlet to 100 PSI with modulating differential
pressure up to 50 PSI (345 kPa)
