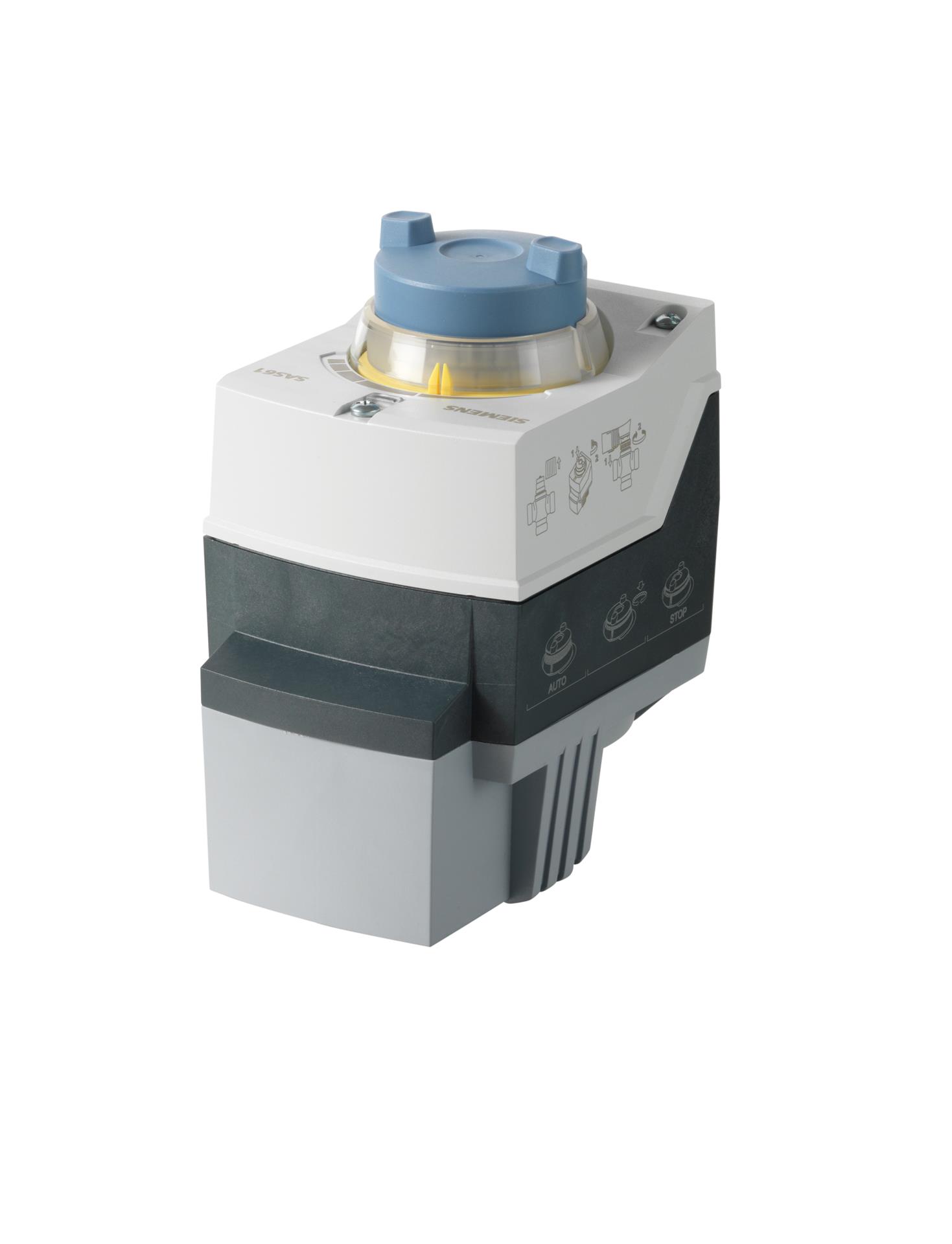

Siemens SAS61.33U 24Vac Proportional Control Spring Return or Non-Spring Return

Siemens SAS61.33U 24Vac Proportional Control Spring Return or Non-Spring Return,
The Powermite SAS Electronic Valve Actuators require a 24 Vac supply,
and receive a 0 to 10 Vdc or a 4 to 20 mA control signal to proportionally control a valve.
This actuator is designed to work with Powermite MT Series Valves with a 7/32-inch (5.5 mm) stroke.

Applications
For use in small to medium HVAC installations with
Powermite valves with a 7/32-inch (5.5 mm) stroke
requiring a minimum of 90 pounds force (400 N). These
valves can be used in liquid and low pressure (<15 PSI)
steam service applications.
Recommendation:
Use only with the MT Series valve bodies. This actuator is
not recommended for 2-position or pulse applications.

SAS61.03U
