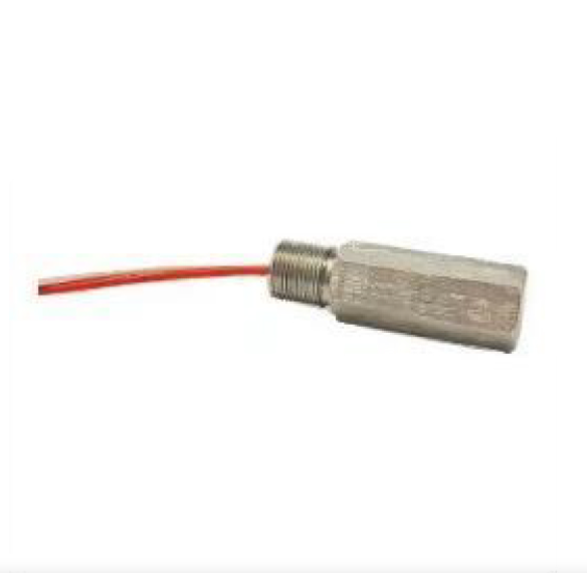

signal surge protector LY26-XF,
This explosion-proof and waterproof data signal surge protector is tailored for harsh industrial environments.
It combines MOV ZnO protection with a robust PVC/PA66/PBT enclosure, rated for IP65, ensuring dust and water resistance.
Fully compliant with IEC 61643-11:2011 / EN 61643-11:2022, and certified by CE & TUV.
We are a manufacturer, factory, and OEM/ODM supplier, supporting wholesale, in bulk, and bulk buy.
Perfect for outdoor RS485/RS232 networks, CCTV signal lines, and industrial monitoring systems.
| Standards | IEC 61643.21 | |||
| Models | LY26-XF | |||
| Parameter | ||||
| Nominal operating voltage U | 24Vdc | |||
| Maximum continuous operating voltage UC | 32Vdc | |||
| X-X Shock rating C1 | 2kV/1kA | |||
| X-C Shock rating C2 | 10kV/5kA | |||
| X-X,X-C Shock rating B2 | 4kV(10/700μs) | |||
| X-XU,@C1 | ≤90V | |||
| X-CU,@C2 | ≤500V | |||
| X-XUp@B2 | ≤45V | |||
| X-CUp@B2 | s300v | |||
| Response time tA | ≤1ns | |||
| Line to line bandwidth fG | 3MHz | |||
| ProtectiveLine | X1-X2 、X1-C 、X2-C | |||
| Mechanical parameters | ||||
| Threaded interface | M20 thread,1/2NPT,3/4NPT optional | |||
| Lead length | 25mm | |||
| Wire cross-sectional area | 1.5mm² | |||
| Product size | 75mmx27mm(excluding leads) | |||
| Housing material | SUS 304 stainless steel+epoxy resin potting | |||
| Working Environment | ||||
| Installation location | Outdoor、Indoor | |||
| Shell protection rating | IP20 | |||
| Temperature range | -40℃…+120℃ | |||
| Humidity range | Relative humidity≤95% | |||
