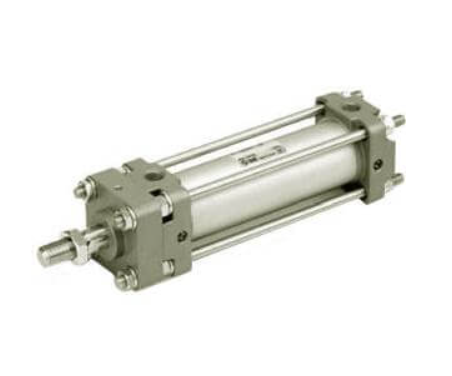

SMC 10/11/21/22-C(D)A2 Air Cylinder Double Acting Single Rod Clean Room,
Clean SMC’s room versions of series CA2. Available om both relief port and vacuum port type.
The CA2 can be ordered with rod end or rear pivot brackets.
The CA2 is available in a large variety of options that will make them suitable for many different applications.
A variety of auto switches are available for mounting, including compact switches and magnetic field resistant switches. The CA2 is available in 40, 50, and 63 bores sizes, and is RoHS compliant.
- Double acting, single rod
- Bore size (mm): 40, 50, 63
- Standard stroke (mm): 50, 75, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500
- Rc, NPT or G port threads
- Clean series
