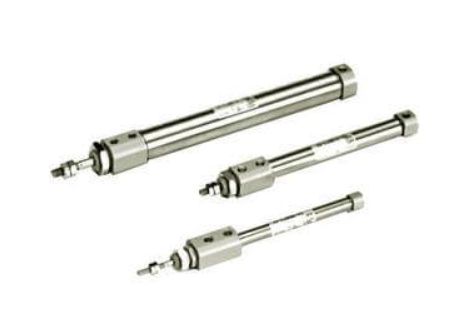

SMC 10/11/21/22-C(D)J2-Z Air Cylinder Double Acting Single Rod Clean Room,
Series CJ2-Z stainless steel tube, air cylinders are available in 10 and 16mm bore sizes with stroke lengths from 15mm to 200mm.
Available in 7 mounting types for versatility. Auto switches are available in band and rail mounting types.
The CJ2-Z switch bracket is transparent to improve visibility of the indicator LED. Pivot and rod end brackets can be ordered with the cylinder under one part number.
- Double acting, single rod for use in clean environment
- Relief or vacuum suction types
- Bore size (mm): 10, 16
- Auto switch capable
