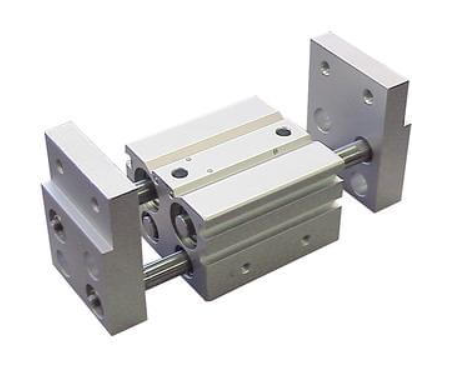

SMC 11/22-MHL2 Parallel Style Wide Opening Air Gripper Clean Series,
Designe for applications that require a wide range of travel for gripping many different sized workpieces in clean room environments.
The MHL2 Series finger motion is synchronize by a rack-and-pinion mechanism.
The double piston construction creates a compact gripper with a large holding force. Vacuum ports, copper fluorine and silicon free options available.
- Bore sizes: 10, 16, 20, 25, 32, 40 mm
- Opening/closing stroke range: 20 – 200 mm
- Auto switch capable
- Copper fluorine and silicon free option
- Option for NSF-H1, food grade lubricant
