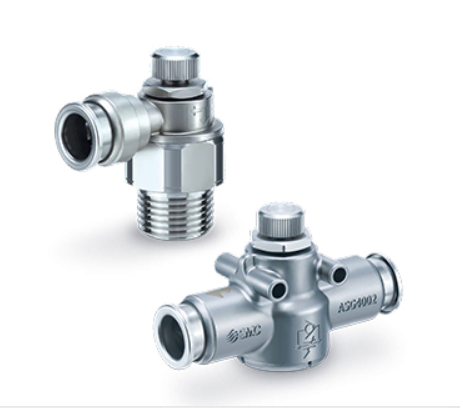

SMC ASG Stainless Steel Speed Controller with One-touch Fitting,
Suitable for applications where copper free specifications are require,
the “ASG” series can also be use in areas where wash down could degrade standard flow controls,
such as food and packaging. This series is designed to offer the maximum control by increasing the number of turns of the needle to 10.
High environmental resistance due to the all stainless steel exterior.
This series also incorporates SMC’s one-touch fitting available for tubing sizes from 4mm to 12mm OD.
- Max. operating temperature: 150°C
- NSF H1 grease
- Connection thread: M5, Rc, G
- Material: stainless steel 316 (body), FKM (seal material)
