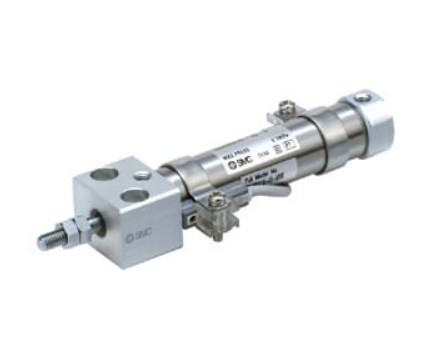

SMC C(D)J2RA-Z Air Cylinder Direct Mount Double Acting Single Rod,
Direct Mount CJ2-Z double acting, single rod, stainless steel tube,
air cylinders are available in 10 and 16mm bore sizes with stroke lengths from 15mm to 200mm.
Optional features include port location and magnet for auto-switch capability. Rod end brackets can be ordered with the cylinder under one part number.
- Direct mount, double acting, single rod
- Compact and lightweight
- Bore sizes (mm): 10, 16
- Standard strokes (mm): 15, 30, 45, 60, 75, 100, 125, 150, 175, 200
- Auto switch capable
