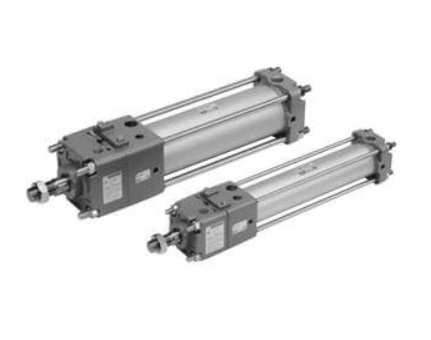

SMC C(D)LA2 Locking Air Cylinder Double Acting Single Rod,
The CLA2 cylinder acts as an air-operated brake with spring-backup.
When external position feedback sends a signal to an air valve,
the brake is actuated and fast-acting shoes grab the actuator shaft.
When pressure is removed, the spring automatically locks the brake onto the shaft.
Three locking mechanisms are available: spring lock,
air pressure lock and air/spring pressure lock.
The CLA2 locks in either direction, comes in five bore sizes, and is available with PT or NPT ports. Other features include non-lube operation, air cushions, and seven mounting styles.
- Double acting, single rod cylinder w/lock
- Mounting: basic, axial foot, rod flange, head flange, single clevis, double clevis, center trunnion
- Bore sizes (mm): 40, 50, 63, 80, 100
- Strokes up to 1500mm (depending on bore size & mounting)
- Auto switch capable
