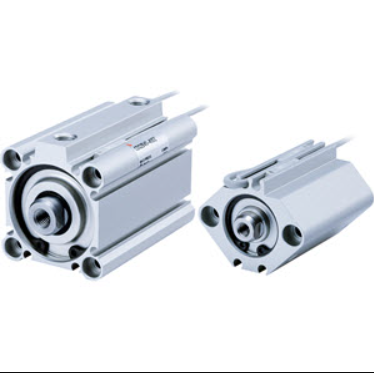

SMC C(D)Q2-Z Compact Cylinder Double Acting Single Rod,
Standard double acting, single rod version of the CQ2 compact cylinder. The CQ2 is available in bore sizes from 4mm to 100mm.
It comes standard with male or female piston rod threads. It is possible to mount auto switches on any of the 4 surfaces.
- Double acting, single rod, compact cylinder
- Bore sizes (mm): 4, 6, 10, 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
- Standard stroke range (mm): 5 to 100
- Port threads: M (12 to 25 bore); Rc, NPT or G (32 to 100 bore)
- Auto switch capable
