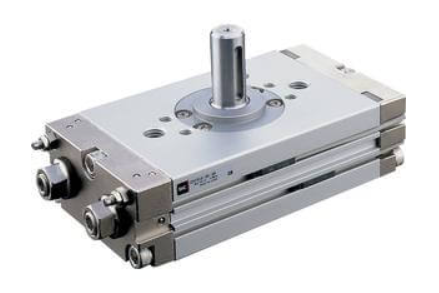

SMC C(D)RQ2B Compact Rotary Actuator Rack & Pinion,
The CRQ2 series is a compact rotary, rack and pinion style actuator.
Single and double shaft types are available in all sizes (10~40mm).
The CRQ2 uses internal cushioning and the body can be used as a flange. The use of a double piston eliminates backlash. Auto switches are available.
- Low profile
- Both single shaft and double shaft are available in all sizes
- 2 auto switches are mountable on the same side
- Rotating angle adjusting range: 350° to 370°
- Options include magnet, shaft type, port thread style, and air cushion
