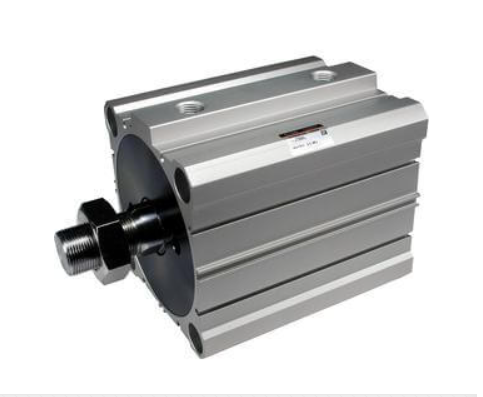

SMC CH(D)Q Compact Type Low Pressure Hydraulic Cylinder Double Acting Single Rod,
CH series hydraulic cylinders are available in compact, round body, JIS or tie-rod types.
Nominal pressure ranges from 3.5MPa to 16MPa. Bore sizes are available,
depending on the series, from 20 to 160. Auto switches are available on most models.
- Compact hydraulic, double acting single rod cylinder
- Bore sizes (mm): 20, 32, 40, 50, 63, 80, 100
- Stroke (mm): 5 to 100
- 3.5Mpa with short overall length
- Auto switch capable
- Compact hydraulic, double acting single rod cylinder
- Bore sizes (mm): 20, 32, 40, 50, 63, 80, 100
- Stroke (mm): 5 to 100
- 3.5Mpa with short overall length
- Auto switch capable
