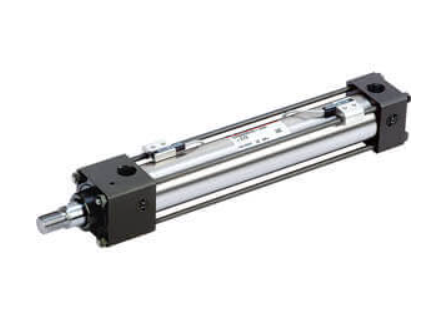

SMC CH(D)SD ISO Standard Hydraulic Cylinder Nominal Pressure 10MPa,
CH series hydraulic cylinders are available in compact, round body, JIS or tie-rod types.
Nominal pressure ranges from 3.5MPa to 16MPa. Bore sizes are available,
depending on the series, from 20 to 160. Auto switches are available on most models.
- Projection area, weight, and overall length has been reduced when compared to the CH2 series
- Applicable bore sizes: 40mm, 50mm, 63mm, 80mm, 100mm
- Nominal pressure: 10 MPa
- Available in 25mm to 1000mm strokes depending on bore size selection
- Auto switch capable
