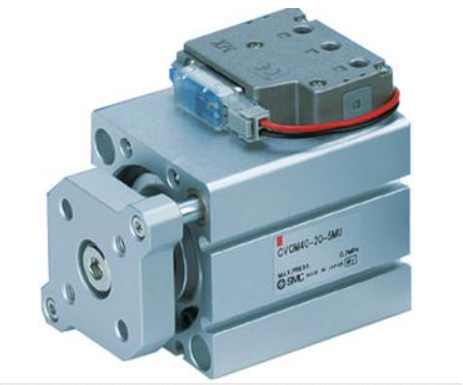

SMC CVQM Compact Cylinder with Solenoid Valve Guide Rod Type,
SMC series CVQ offers a compact cylinder and valve integrated for compactness.
This series offers space, energy, and labor savings.
Reducing the piping between the cylinder and valve offers approximately 50% reduction in air consumption.
Choose from side and axial piping.
The CVQ series is designed so that the D-M9* series auto switch can be mounted flush with the cylinder profile.
- Guide rod configuration with improved lateral load resistance
- Plate non-rotating accuracy ±0.1°
- Bore size: 32, 40, 50, 63mm
- Standard stroke range: 5 to 100mm depending on bore size
- Mounting pitch is interchangeable with CQ2 series
