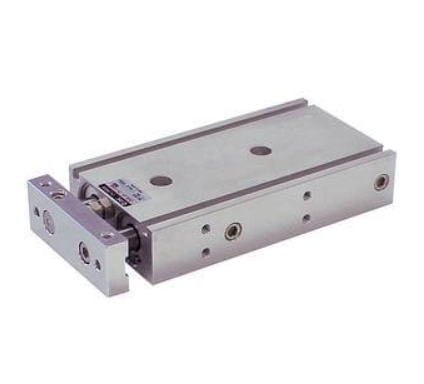

SMC CXSM-R Dual Piston Rods with Retract End Lock Slide Bearing,
The CXS-R Series is a dual piston actuator with non-rotating accuracy ± 0.1° enhance,
with a retract end lock feature for added machine safety. The end lock will engage,
when air pressure is lost and can be released by reintroducing air pressure or via a manual release bolt. The CXSM-R slide bearing type provides lateral stability protecting it from side load impacts.
- Bore sizes: 6, 10, 15, 20, 25, 32mm
- Non-rotating accuracy: ± 0.1°
- Stroke lengths up to 100mm
- Auto switch capable
