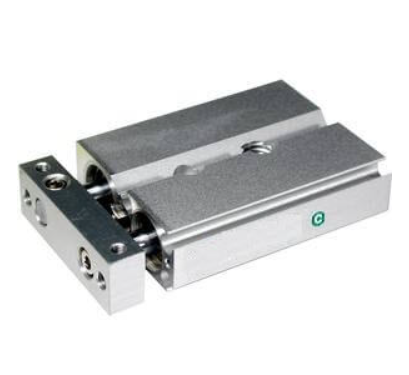

SMC 10/11/12/21/22-CXSJ Compact Dual Piston Rods Clean Room Series Copper Fluorine Silicone-free

SMC 10/11/12/21/22-CXSJ Compact Dual Piston Rods Clean Room Series Copper Fluorine Silicone-free,

The 1*-CXSJ Clean Room Series is a dual piston actuator with non-rotating accuracy ± 0.1° enhance,
with fluorine grease making it clean room ready. Expelling contaminants outside a clean room can done by: (11-) vacuum relief,
or (10- or 12-) exhaust relief. The 2*-CXSJ Copper,
Fluorine, Silicone-free Series is a dual piston actuator ,
with non-rotating accuracy ± 0.1° enhanced with lithium soap based grease making it clean room ready.
Expelling contaminants outside a clean room can either done by: (21-) exhaust relief,
or (22-) vacuum relief. The clean CXSL high precision ball bushing bearing type allows for smooth operation that ensures stable travel resistance.
The clean CXSM slide bearing type provides lateral stability protecting it from side load impacts.

• Bore sizes: 6, 10mm
• Non-rotating accuracy: ± 0.1°
• 11- vacuum relief
• 12- exhaust relief (available only in L, ball bushing bearing)
• 21- exhaust relief (available only in L, ball bushing bearing)
• 22- vacuum relief (available only in L, ball bushing bearing)
• PTFE grease used in Clean Room Series
• Lithium grease used in Copper, Fluorine, Silicone-free Series
• Auto switch capable
