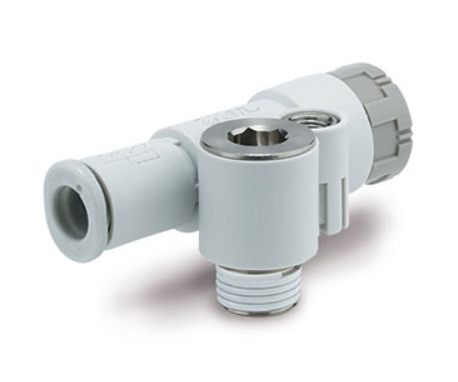

SMC JASV Speed Exhaust Controller Compact Type,
The compact JASV speed exhaust controller is designe for decreased mounting height compared to the standard ASV.
This enables installation in much smaller spaces than the equivalent ASV120F/220F.
It features a push-lock adjustment design and can also be adjusted using a screwdriver (when unlocked).
- Three inch (1/8″, 5/32″, 1/4″) and three metric (3.2, 4, 6mm) tube connections available
- Available threaded connections: M3 x 0.5, M5 x 0.8, 10-32 UNF, R1/8, NPT1/8, G1/8
- Simple mounting using a hex key
