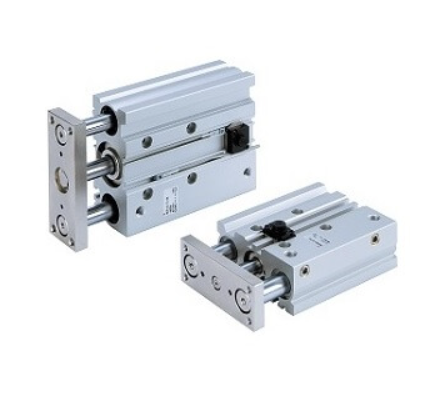

SMC MGPA-H/R Guide Rod High Precision Ball Bushing Cylinder with End Lock,
The MGPA-H/R is a compact body, end lock actuator integrate,
with internal guide shafts to isolate the load bearing from the movement of the actuator’s rod and seals.
The end lock can be specified for either the head end (H) or rod end (R) of the stroke.
The brake spring, end lock mechanism will engage when air pressure is lost,
for drop prevention applications and can release by reintroducing air pressure or via a manual release bolt.
The press fitted high precision ball bushing results in a non-rotating accuracy of +/-0.01° across all bore sizes.
- Bore sizes: 20, 25, 32, 40, 50, 63, 80, 100 mm
- Non-rotating accuracy of +/-0.01° across all bore sizes.
- Stroke lengths: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400 mm
- Auto switch capable
