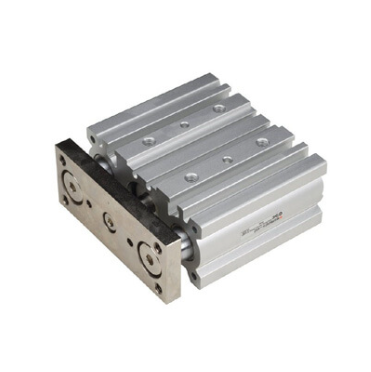

SMC MGPL-Z Standard Guided Cylinder Ball Bushing Bearing,
The MGPL is a compact body actuator integrate,
with internal guide shafts to isolate the load bearing from the movement of the actuator’s rod and seals.
The high precision ball bushing allows for smooth operation that ensures stable travel resistance, suitable for pushing and lifting applications.
- Bore sizes: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm
- *Non-rotating accuracy: +/-0.10° (12 & 16 mm bore)
- -Non-rotating accuracy: +/-0.09° (20 & 25 mm bore)
- **Non-rotating accuracy: +/-0.08° (32 & 40 mm bore)
- –Non-rotating accuracy: +/-0.06° (50 & 63 mm bore)
- /Non-rotating accuracy: +/-0.05° (80 & 100 mm bore)
- Rubber bumpers as standard
- Auto switch capable
