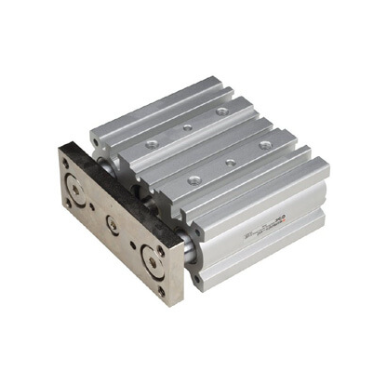

SMC MGPM-Z Standard Guided Cylinder Slide Bearing,
The MGPM is a compact body actuator integrate,
with internal guide shafts to isolate the load bearing from the movement of the actuator’s rod and seals.
THEREFORE The carbon steel alloy slide bearing provides lateral stability protecting it from side load impacts, suitable for stopping applications.
- Bore sizes: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm
- *Non-rotating accuracy: +/-0.08° (12 & 16 mm bore)
- **Non-rotating accuracy: +/-0.07° (20 & 25 mm bore)
- ***Non-rotating accuracy: +/-0.06° (32 & 40 mm bore)
- Non-rotating accuracy: +/-0.05° (50 & 63 mm bore)
- ****Non-rotating accuracy: +/-0.04° (80 & 100 mm bore)
- Rubber bumpers as standard
- Auto switch capable
