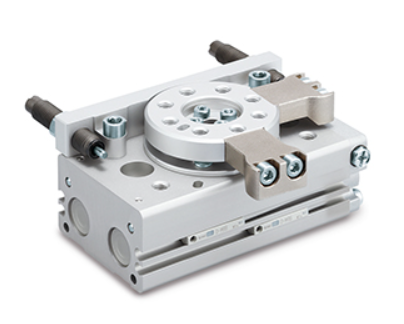

SMC MSQ Rotary Table Rack & Pinion External Shock Absorber,
The MSQ compact rotary table is ideal for material transfer applications.
It incorporates load bearings and a mounting face with a rack-and-pinion style rotary actuator.
The seven sizes are 10, 20, 30, 50, 70, 100, and 200 with rotational adjustments from 0-190 degrees,
and auto switch capability. Additional features include a hollow shaft and direct load mounting possibility.
- Rotary table w/external shock absorber
- 4 bore sizes available
- 90° and 180° rotation available
- Auto switch capable
- Compact and lightweight
- Height: 28% reduction (54mm to 39mm)
- Weight: 28% reduction (940g to 680g)
- Enlarged center hole for piping (9mm to 12mm) compared to existing MSQ model
