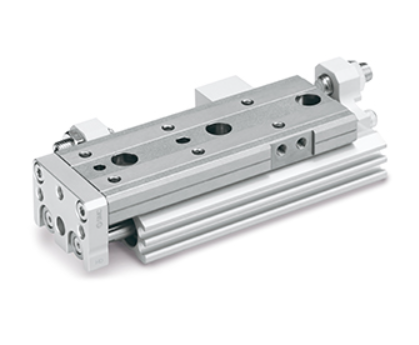

SMC MXQ-XC4A Dust Resistant Precision Slide Table Recirculating Bearings,
The MXQ is the newest generation of precision slide tables integrate,
with hardened stainless-steel guides and rails to isolate the load bearing from the movement of the dual rods and piston seals.
and The MXQ’s thinly formed special stainless steel slide table reduces thickness allowing for a larger guide pitch providing high rigidity.
furthermore The slide tables’s reduced weight also increases allowable kinetic energy.
moreever The stoppers and shock absorbers are positione at the center axis to minimize load deflection.
in addition The dowel pin holes posiitoned on the center axis standardize mounting conditions for the basic and symmetric styles.
olso The end lock option prevents the slide table from dropping in vertical applications,
enhancing safety in the event of air pressure loss.
- High durability
- Bore sizes: 6, 8, 12, 16, 20, 25
- Up to 4 times more durable in dusty environments
- Applicable powder particle sizes: 20 to 50 microns
- Auto switch capable
