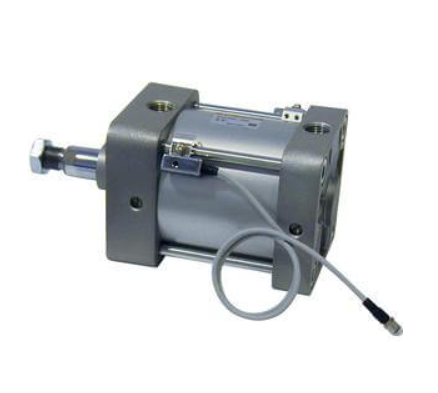

SMC NC(D)A1 NFPA Air Cylinder Double Acting Single Rod Temperature Resistant Options,
Series NCA1 medium duty tie rod cylinders are NFPA interchangeable,
have a crimped piston rod assembly, are pre-lubricated and available in 12 mounting styles.
Bore sizes range from 1.5 to 4 inches. The XB6 high temperature resistant option is rated for use in environments up to 300° F (150° C). The XB7 low temperature resistant option is rated for use in environments down to -22° F (-30° C)
- XB6 high temp & XB7 low temp resistant options
- Double acting single rod
- Bore sizes: 1½, 2, 2½, 3¼, 4″
- Strokes from 1 to 30″
- 12 mounting options
