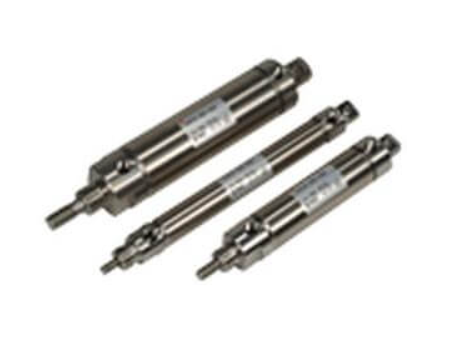

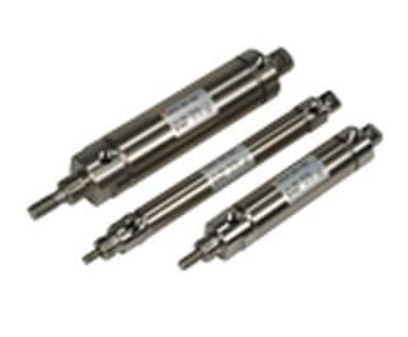

SMC NC(D)M All Stainless Steel Cylinder Double Acting Single Rod X6009,
All stainless steel exterior double acting single rod version of our NCM cylinders.
A wear ring extends the seal life and a bronze rod bushing is standard on all bore sizes.
The NCM is available in 2 mounting styles (front nose & double end).
The double end mount does automatically include a rear clevis hole.
The NCM is auto-switch capable without any change in cylinder dimension. Bore sizes range from 3/4″ to 2″ and standard strokes from 1/2″ to 12″.
- Corrosion resistant 304 stainless steel exterior components
- 6 bore sizes
- Built-in rod wiper protects interior from contaminants
- Auto switch capable
- Dimensionally interchangeable with standard NCM series
