SMC NC(D)M Double Acting Single Rod Stroke Options,

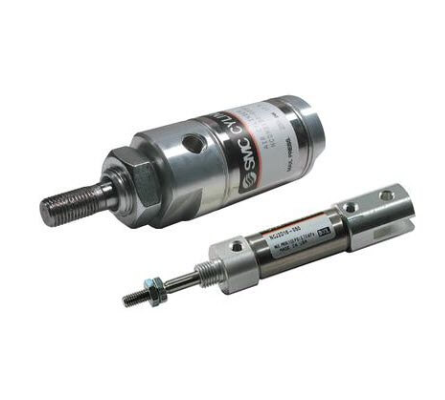

Series NCM stainless steel cylinder offers space savings, high performance,
and interchangeability with other stainless steel cylinders.
A wear ring extends the seal life and a bronze rod bushing is standard on all bore sizes.
The NCM is available in 4 mounting styles (front nose, double end, rear pivot,
and block mount) as well as double rod and spring return or spring extend models.
The NCM is auto-switch capable without any change in cylinder dimension. Bore sizes range from 7/16″ to 2″ and standard strokes from 1/2″ to 12″.
- XB9 (Low Speed) double acting single rod
- XB9 (Low Speed) Bore sizes (inch): 3/4, 7/8, 1 1/16,1 1/4, 1 1/2
- X6005 (Double Acting Spring Assist) double acting single rod spring assist
- X6005 (Double Acting Spring Assist) Bore sizes (inch): 3/4, 1 1/16, 1 1/2
- Mounts: nose, rear, end
- Variety of switches and lead wire lengths
- Optional magnet available
- Optional end of stroke bumpers
