SMC NC(D)M Double Acting Single Rod Port Option,

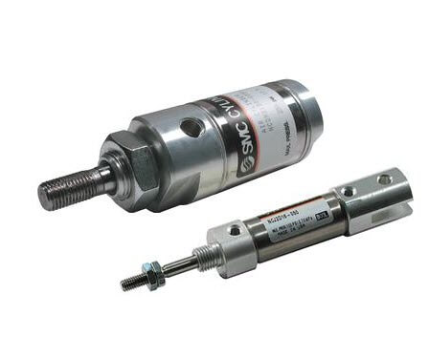

Series NCM stainless steel cylinder offers space savings, high performance,
and interchangeability with other stainless steel cylinders.
A wear ring extends the seal life and a bronze rod bushing is standard on all bore sizes.
The NCM is available in 4 mounting styles (front nose, double end,
rear pivot, and block mount) as well as double rod and spring return or spring extend models.
The NCM is auto-switch capable without any change in cylinder dimension. Bore sizes range from 7/16″ to 2″ and standard strokes from 1/2″ to 12″.
- Double acting single rod
- Bore sizes (inch): 3/4, 7/8, 1 1/16,1 1/4, 1 1/2
- Mounts: nose, rear
- Variety of switches and lead wire lengths
- End of stroke bumper available
