SMC NCM Double Acting Single Rod Temperature Resistant Options,

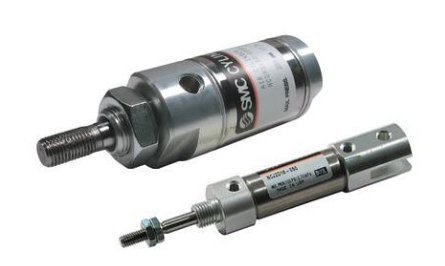

Series NCM stainless steel cylinder offers space savings, high performance,
and interchangeability with other stainless steel cylinders.
A wear ring extends the seal life and a bronze rod bushing is standard on all bore sizes.
The NCM is available in 3 mounting styles (front nose, double end, and rear pivot).
- Double acting single rod
- Bore sizes (inch): 3/4, 7/8, 1 1/16,1 1/4, 1 1/2
- Mounts: nose, rear, double end
- Low temperature option (XB7) temperature range -22°F to 158°F
- High temperature option (XB6) temperature range -4°F to 300°F
