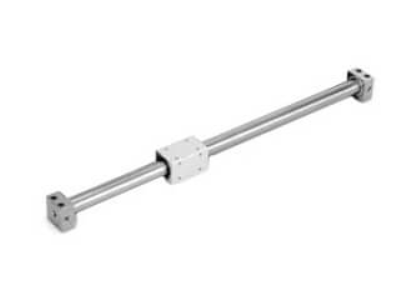

SMC Rodless Cylinder 12-CY3R Clean Room Magnetically Coupled Direct Mount,
With no external leakage, the CY series can be used in many diverse environments, including Clean Room.
Magnetically coupled cylinders have a wide range of applications,
and save mounting space. Loads and moments are possible through the use of integrated guides.
A variety of guides can be used to achieve the necessary accuracy or allowable moment needed for your application.
CY is available in 9 bore sizes, from 6mm to 63mm with standard stokes up to 1000mm.
The 5 different model variations offer widest application choice. Auto switches are integrated as standard.
- Bore sizes: 6, 10, 15, 20, 25, 32, 40, 50, 63 mm
- Stroke lengths: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000, 1300 mm
- Direct mount type
- Speed: 50 ~ 400 mm/sec.
- Fluorine grease
- ISO Class 5 (Class 100)
- Auto switch capable
