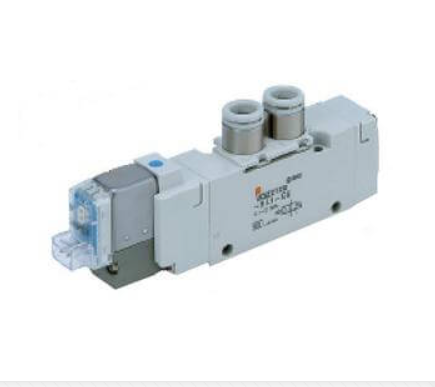

SMC VQZ**2* 1000/2000/3000 Series 5 Port Solenoid Valve Body Ported,
Series VQZ base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. Series VQZ Body Ported Solenoid Valves combine flexibility with high performance and long life in an inline body style.
- Fluid: air, inert gas
- Operating pressure range: 0.1 – 0.7MPa
- Effective area mm 2 (Cv):
metal seal 2.0 (0.11) – 12.6 (0.7);
rubber seal 3.1 (0.17) – 16.2 (0.9) - Coil rated voltage: 12, 24VDC;
100, 110, 200, 220VAC - Response time (ms) standard 1W, high pressure 1.5W:
metal seal 25 or less; rubber seal 30 or less - Ambient & fluid temperature: -10 to 50°C
