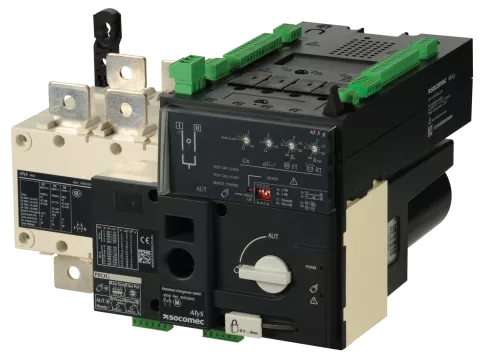

SOCOMEC ATyS g 3X315A F 95533031 Automatic Transfer Switch ATyS g 3P 315A,
ATyS g are 3 or 4 pole automatic transfer switches, with positive break indication.
They incorporate all the functions offered by the ATyS r, as well as functions intended for mains/mains and mains/genset applications.
In automatic mode they enable the monitoring of, and the on-load changeover between,
two power supply sources, in accordance with the parameters configured via potentiometers and DIP switches.
Remote monitoring of the ATyS g is possible with the optional RS485 communication module.
They are intended for use in low voltage power supply systems where a brief interruption of the load supply is acceptable during transfer
Strong Points
-
Rapid commissioning
-
Specifically designed for mains/mains and mains/genset applications
-
RS485 communication
-
More robust
Classification
| UNSPSC | 39122205 |
|---|---|
| ETIM Class | EC000216 |
| IGCC | 5177 |
Commerce
| Description | Automatic Transfer Switch ATyS g, switching type I-0-II, 3P 315A, with positive break indication, ATS with integrated Dual Power Supply, repleacable motor and back plate mounting for Mains-Mains & Mains-Genset applications |
|---|---|
| Effective date | 2012-06-21 |
| Offer Life Cycle Code | 40 |
| Country of origin | FR |
Environmental Sustainability
| Climate change – Total – Cradle to Grave [kg CO₂ eq.] | 1980 |
|---|---|
| Climate change – Total – Cradle to Gate [kg CO₂ eq.] | 104 |
| SVHC > 0.1 mass percentage? | No |
| RoHS applicable? | Yes |
ETIM – Electrical characteristics
| Max. rated operation voltage Ue AC [V] | 1000 |
|---|---|
| Rated operating voltage [V] | 380..690 |
| Rated permanent current Iu [A] | 315 |
| Rated permanent current at AC-23, 400 V [A] | 315 |
| Rated permanent current at AC-21, 400 V [A] | 315 |
| Rated short-time withstand current lcw [kA] | 8 |
| Rated operation power at AC-23, 400 V [kW] | 160 |
| Switching power at 400 V [kW] | 2520 |
| Conditioned rated short-circuit current Iq [kA] | 50 |
| Number of poles | 3 |
ETIM – Mechanical characteristics
| Suitable for floor mounting | No |
|---|---|
| Suitable for front mounting 4-hole | No |
| Suitable for front mounting centre | No |
| Suitable for distribution board installation | No |
| Suitable for intermediate mounting | Yes |
| Colour control element | Other |
| Degree of protection (IP), front side | IP20 |
| Width [mm] | 328 |
| Height [mm] | 170 |
| Depth [mm] | 244 |
ETIM – Technical features
| Version as main switch | Yes |
|---|---|
| Version as maintenance-/service switch | Yes |
| Version as safety switch | Yes |
| Version as emergency stop installation | No |
| Version as reversing switch | Yes |
| Number of switches | 2 |
| Number of auxiliary contacts as normally open contact | 3 |
| Motor drive optional | No |
| Motor drive integrated | Yes |
| Voltage release optional | No |
| Device construction | Built-in device fixed built-in technique |
| Type of control element | Other |
| Interlockable | Yes |
| Type of electrical connection of main circuit | Bolt connection |
Logistics
| GTIN/EAN | 3596032775643 |
|---|---|
| Customs number | 8536508000 |
| Price unit | PC |
| Weight of the packing unit [kg] | 11.1 |
| Length of the packing unit [m] | 0.35 |
| Width of the packing unit [m] | 0.36 |
| Depth of the packing unit [m] | 0.47 |
Norms
| Conformity to standards |
|
|---|
Technical Characteristics
| Height [mm] | 170 |
|---|---|
| Width [mm] | 328 |
| Depth [mm] | 244 |
| Weight [kg] | 11.1 |
| Control operator | Automatic programmable for GENSET |
| Number of poles | 3 |
| Rated current [A] | 315 |
| Type | Class PC |
| Frame size | B4 |
