Home  /  Terminals  /  Terminals & Bars  /

12 Channel Thermocouple Data Logger sensor PCE-T 1200

12 Channel Thermocouple Data Logger (SD card) k type sensor PCE-T 1200

Add to wishlist
Category: Terminals & Bars
Brand: Siemens
Share: Facebook Twitter Tumblr Linkedin Whatsapp

You may also like

  • Siemens 535-741-4 Duct Temperature Sensor

    Siemens 535-741-4 Duct Temperature Sensor

  • Siemens 599-10663 1 internal thread Unions

    Siemens 599-10663 1 internal thread Unions

  • 1SDA071054R1MP / E2.2H 2000 Ekip Touch LI 3p FHR +Ekip Measuring Ölçüm Modülü ABB THREE-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE

    1SDA071054R1MP / E2.2H 2000 Ekip Touch LI 3p FHR +Ekip Measuring Ölçüm Modülü ABB THREE-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE

  • 1SBL177001R1310 / AF16-30-10-13 ABB contactor with 1 built-in auxiliary contact and screw terminals

    1SBL177001R1310 / AF16-30-10-13 ABB contactor with 1 built-in auxiliary contact and screw terminals

  • Siemens 3RW5548-2HF14: SIRIUS 3RW55 soft starter, standard, 200...480 V, 48 A, 110...250 V AC/DC control voltage, 3-phase motor control, with digital inputs/outputs, analog output, and removable terminal block.

    Siemens 3RW5548-2HF14: SIRIUS 3RW55 soft starter, standard, 200...480 V, 48 A, 110...250 V AC/DC control voltage, 3-phase motor control, with digital inputs/outputs, analog output, and removable terminal block.

  • Siemens 373-03162 Two Way Globe Valve Assemblies

    Siemens 373-03162 Two Way Globe Valve Assemblies

Description
Shipping & delivery

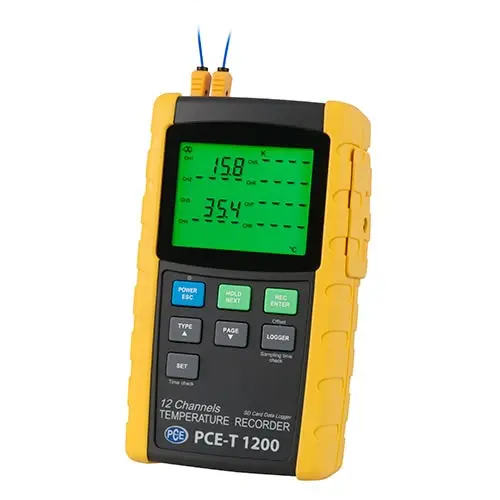

12 Channel Thermocouple Data Logger (SD card) k type sensor PCE-T 1200,
PCE-T 1200 is a 12-channel data-logging digital thermometer,
that accommodates SD cards up to 16 GB in size.
The optional software allows the digital thermometer,
to connect to a PC via USB for direct data transfer and analysis via Microsoft Excel.
The datalogging interval can be set from 1 second per channel up to a maximum of 3600 seconds.
The 4.5″ LCD display features a green backlight,
and can indicate up to eight channels of measurements simultaneously (CH 1 … CH 8).
With just the press of a button, the remaining channels (CH 9 … CH 12) can be viewed.
The digital thermometer works with six different kinds of transducers,
or sensors including type K, type J, type T, type E, type R and type S thermocouples.

Specification

Sensor type Resolution Measurement range Accuracy
Type K 0.1°C / 0.18°F -50.1 … -100°C / -58.2 … 212°F ± (0.4% + 1°C / 0.8°F)
-50 … 999.9°C / -58 … 1831.8°F ± (0.4% + 0.5°C / 0.9°F)
1°C / 0.8°F 1000 … 1300°C / 1832 … 2372°F ± (0.4% + 1°C / 0.8°F)
Type J 0.1°C / 0.18°F -50.1 … -100°C / -58.2 … 212°F ± (0.4% + 1°C / 0.8°F)
-50 … 999.9°C / -58 … 1831.8°F ± (0.4% + 0.5°C / 0.9°F)
± (0.4% + 1°C / 0.8°F)
1°C / 0.8°F 1000 … 1150°C / 1832 … 2102°F
Type T 0.1°C / 0.18°F -50.1 … -100°C / -58.2 … 212°F ± (0.4% + 1°C / 0.8°F)
-50 … 400°C / -58 … 752°F ± (0.4% + 0.5°C / 0.9°F)
Type E 0.1°C / 0.18°F -50.1 … -100°C / -58.2 … 212°F ± (0.4% + 1°C / 0.8°F)
-50 … 900°C / -58 … 1652°F ± (0.4% + 0.5°C / 0.9°F)
Type R 1°C / 0.8°F 0 … 1700°C / 32 … 3092°F ± (0.5% + 3°C / 7.4°F)
Type S 1°C / 0.8°F 0 … 1500°C / 32 … 2732 ± (0.5% + 3°C / 7.4°F)
Power consumption (lights off / logging off) 7.5-mA
Power consumption (lights off / logging on) 25-mA
Dimensions 225 x 125 x 64 mm / 8.9 x 4.9 x 2.5 in
Weight 827 g / 1.8 lbs (excl. battery)
Operation conditions 0°C … 50°C / 32 … 122°F, 85% rH
