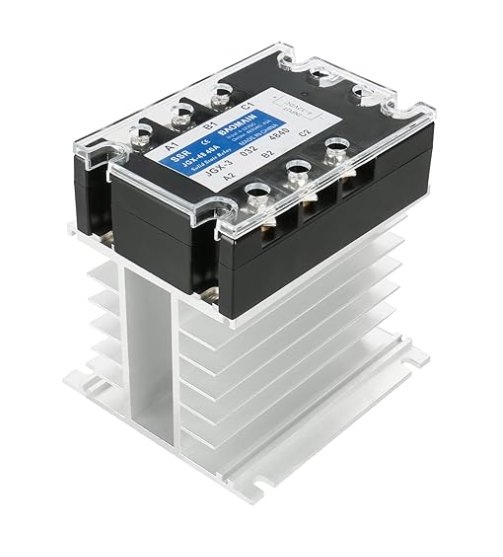

3 Phase Solid State Relay JGX-3340A,
4-32 VDC Input 480VAC 40 Amp Output DC/AC with Heat Sink.
| Control Voltage | 4-32VDC |
| Output Voltage | 24-480VAC |
| Control Current | DC≤25mA |
| Load Current | 40A |
| Power off Time | ≤10mS |
| Medium Pressure Resistance | 2500VAC |
| Mounting Hole Size | 7x5mm/0.28″X 0.2″(L*W) |
| Dimension | 4.1″x2.9″x1.3″ (L*W*H ) |
| Control Method | DC to AC |
| Contact Type | Normal Open |
| Ambient Temperature | -30~+75℃ |
| Mouting Method | Screw fixed |
Flame-Retardant Protective Case
- High-Temp. Resistant Plastic Materials
- With Good Sealing Performance
- Increase High Temp. Resistance
- Enhance Shell Hardness
Copper Heat Sink
- Smooth Surface
- Copper Thickened Base Plate
- Prevents operation of overheating
- Heat Dissipation Efficiency keep more Safe and Stable
Pure Copper Output Terminal
- Not Easy to heating
- Corrosion Resistant
- High Conductivity
- Match with High Quality Screws
APPLICATION
- Solid state relay ideal for Automatic process control, a must component for Temperature Controller and other machinery control system.
- It can be used in computer peripheral interface Devices, electric furnace heating THERMOSTAT system, cnc machinery, industrial automation Devices
- Ideal for temperature controllers, heaters, ovens and other electrical products.
